1 Status LED 5 Console port (IOIOI)
2 Power LED 6 Ethernet port (MGMT)
3 USB LED 7 Ethernet port (SERVICE)
4 USB port 8 Active CP LED
Table 10. CP blade LED descriptions
LED purpose Color Status
Recommended
Action
Power Steady green CP blade has is on. No action required.
No light (LED is off) CP blade does not
on.
Ensure that the blade
is firmly seated and
has power.
Status No light (LED is off) CP blade is either
healthy or does not
have power.
Verify that the power
LED is on.
Steady amber CP blade is faulty or
the switch is still
booting.
Ensure that the blade
is firmly seated and
the switch has
completed booting. If
the LED remains
amber, contact IBM.
Slow-flashing amber
(on 2 seconds; then
off 2 seconds)
CP blade is not
seated correctly or is
faulty.
Pull the blade out
and reseat it. If the
LED continues to
flash, replace blade.
Fast-flashing amber
(on 1/2 second; then
off 1/2 second)
Environmental range
exceeded.
Check for
out-of-bounds
environmental
condition and correct
it.
3
4
5
6
7
8
1
2
384b010

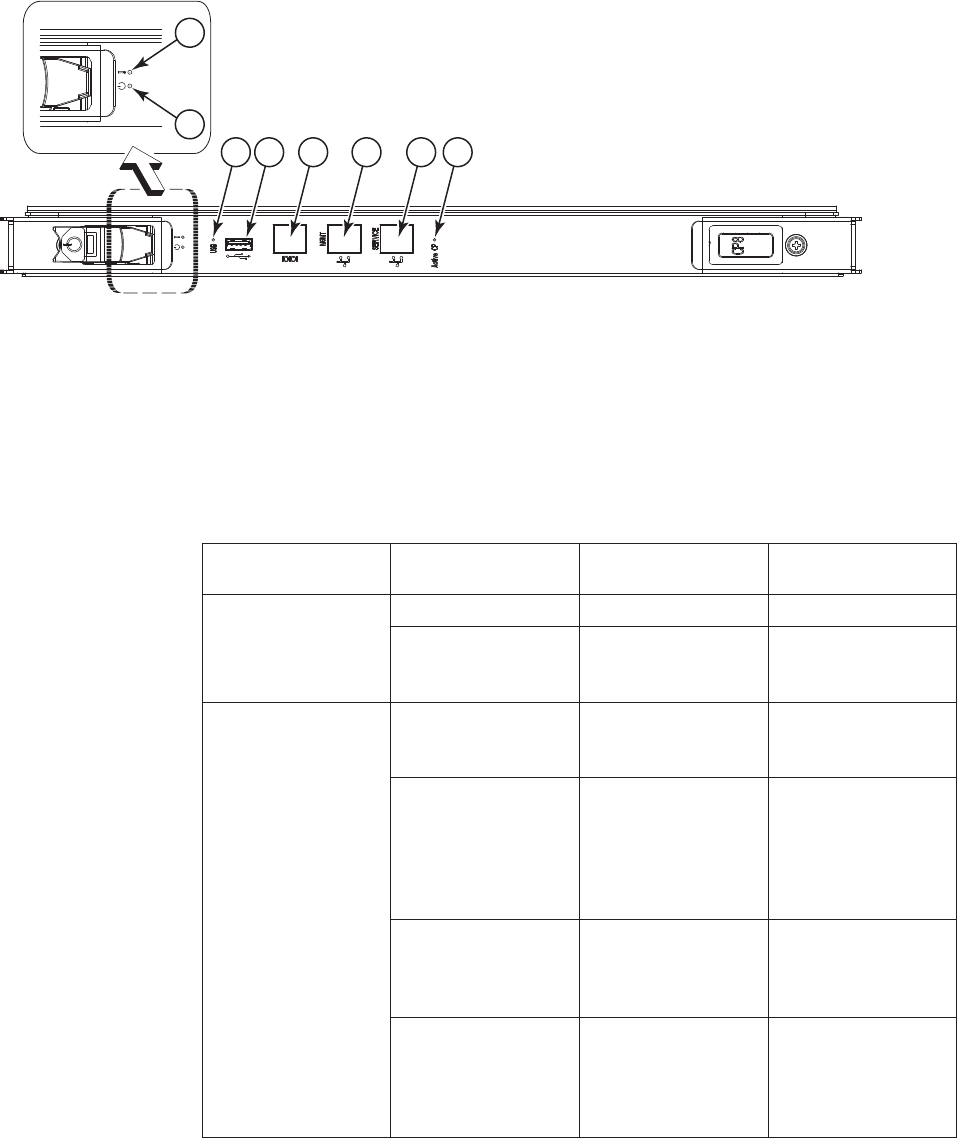

Figure 26. Control processor blade (CP8) LEDs
