1 Chassis 1 (SAN384B)
2 Core switch blades (CR4S-8)
3 Control processor blades (CP8)
4 Port blades
5 ICL connector (ICL 1)
6 ICL connector (ICL 0)
7 ICL cables
8 Chassis 2 (SAN768B)
1
2
5
6
3
4
7
8
384b027

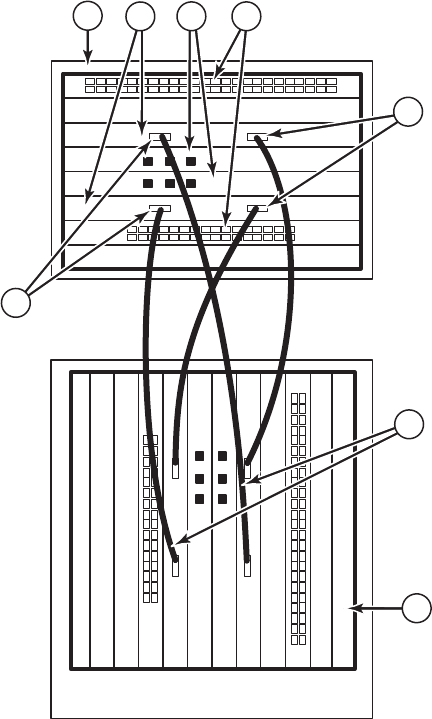

Figure 46. ICL cable connections between a SAN384B chassis and a SAN768B chassis.
88 SAN384B Installation, Service, and User Guide
