v Improved cable management using two vertical cable management finger
assemblies
v Constant intake and FRU temperature monitoring
v Redundant AC primary power connections to ensure high availability. Each
power supply has its own connector
Note: Airflow in the SAN384B is from the non-port (non-cable) side to the left side
of the chassis. With the port-side exhaust kit installed (see Figure 2 on page
4, the air flows out the vent on the port side of the chassis.

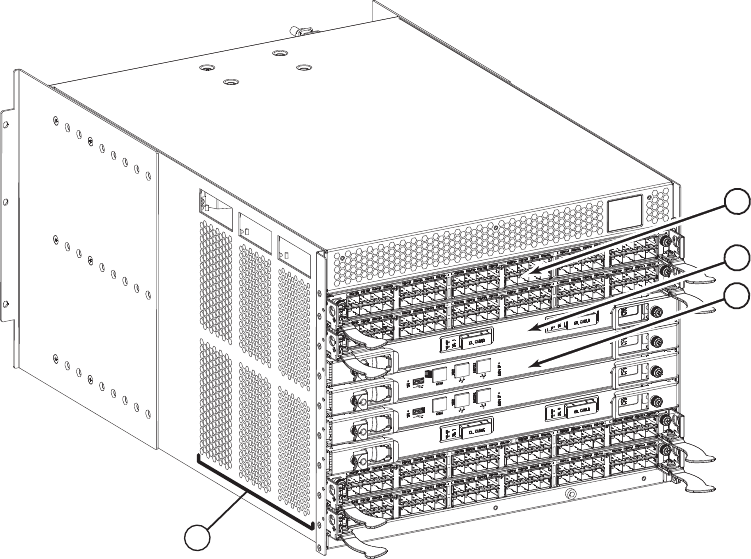

Figure 1 shows a sample configuration of the port side of the SAN384B with four
FC8-48 port blades installed.
1 FC8-48 port blade (example, 4x) 3 Control processor blade (CP8) (2x)
2 Core switch blade (CR4S-8) (2x) 4 Exhaust vent
Figure 2 on page 4 shows the SAN384B with the port-side exhaust kit installed
over the chassis exhaust vent (sample configuration). The exhaust is routed from
the chassis exhaust vent through the port-side exhaust kit. The exhaust exits
through the vent grill below the chassis.
1
3
4
2
384b001
Figure 1. Port side of the SAN384B (sample configuration)
Chapter 1. Introduction 3
