Removing and replacing an SFP, SFP+, or XFP optical
transceiver
The SAN384B comes with a transceiver extraction tool (see Figure 41) and holster.
The extraction tool is designed to remove transceivers from blades where the space
is limited. To use the extraction tool, slide the tool on to the bale of the transceiver
and pull it out.
Note: This tool is part of the SAN384B ship group and should be kept with the
chassis.
Attention: mSFP optical transceivers should not be inserted into ports intended
for SFP or SFP+ transceivers. They will be faulted on power-up for Fabric OS 6.4.0
and later.
Removing an SFP, SFP+, or XFP optical transceiver
To remove an SFP, SFP+, or XFP (FC6-10 blade only) transceiver, complete the
following steps.
1. Remove any cables that are inserted into the transceiver. Use the extraction tool
to open the cable latching mechanism.
2. Pull the bail (wire handle) 1 away from its pivot point and out, sliding the
transceiver out of the port (Figure 42).
bm480020

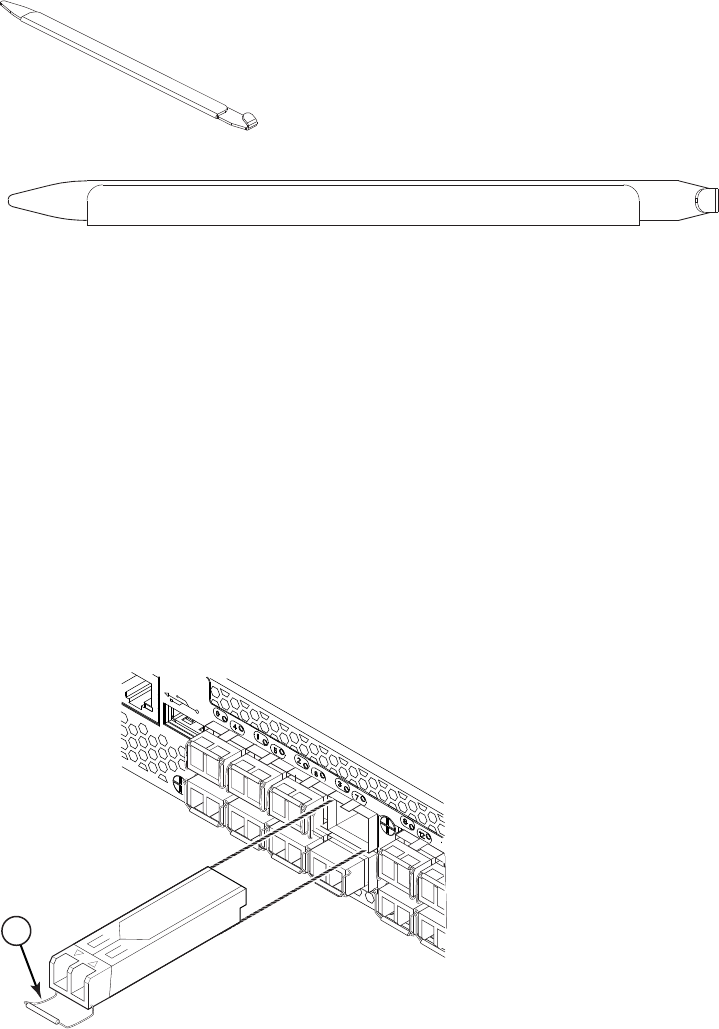

Figure 41. Optical transceiver (SFP, SFP+, and XFP) extraction tool
!
1
B768ig051
Figure 42. Replacing an optical transceiver
82 SAN384B Installation, Service, and User Guide
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
