TASCAM HS-4000 81
10 – Internal settings

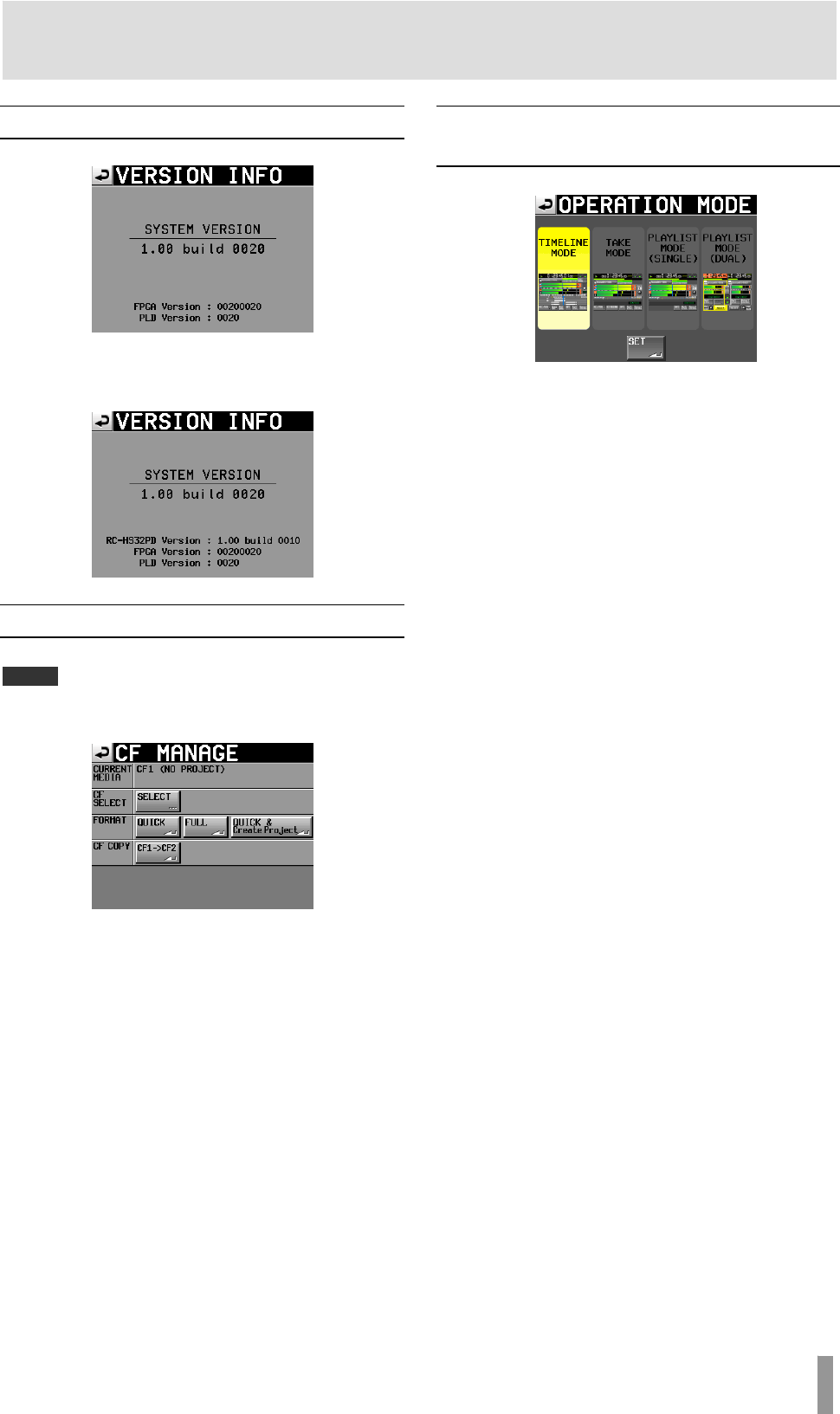

Version display (VERSION INFO)
This page shows the unit’s SYSTEM version.
Touch the bottom center of the screen to show the version of
the internal device data and the version of any TASCAM
RC-HS32PD remote controller (sold separately) connected to the
unit.
Managing CF cards (CF MANAGE)
Use this screen to manage CF cards.
NOTE
If you execute any of the FORMAT item commands or CF COPY, all the data
on the CF card will be erased. Execute these commands only if you are
absolutely certain that you want to erase the card.
CURRENT MEDIA
This shows the currently selected card slot name and its status.
CF SELECT
Touch this to open the CF SELECT screen where you can
choose the CF card for recording and playback.
FORMAT
Format the CF card.
QUICK button:
This only formats CF card management information.
FULL button:
This formats the entire CF card.
QUICK & Create Project button:
After formatting only the CF card management information,
a new project is automatically created with the same
settings as the current project.
CF COPY
This copies the entire CF card in the current CF slot to the other
CF slot.
Operation mode selection
(OPERATION MODE)
Set the unit’s operation mode on this page.
After selecting an operation mode, touch the SET button to
switch to it and return to the Home Screen.
TIMELINE MODE
The timeline mode becomes active and the Home Screen
reopens.
TAKE MODE
The take mode becomes active and the Home Screen reopens.
PLAYLIST MODE (SINGLE)
The playlist mode (single mode) becomes active and the Home
Screen reopens.
PLAYLIST MODE (DUAL)
The playlist mode (dual mode) becomes active and the Home
Screen reopens.
