26 TASCAM HS-4000

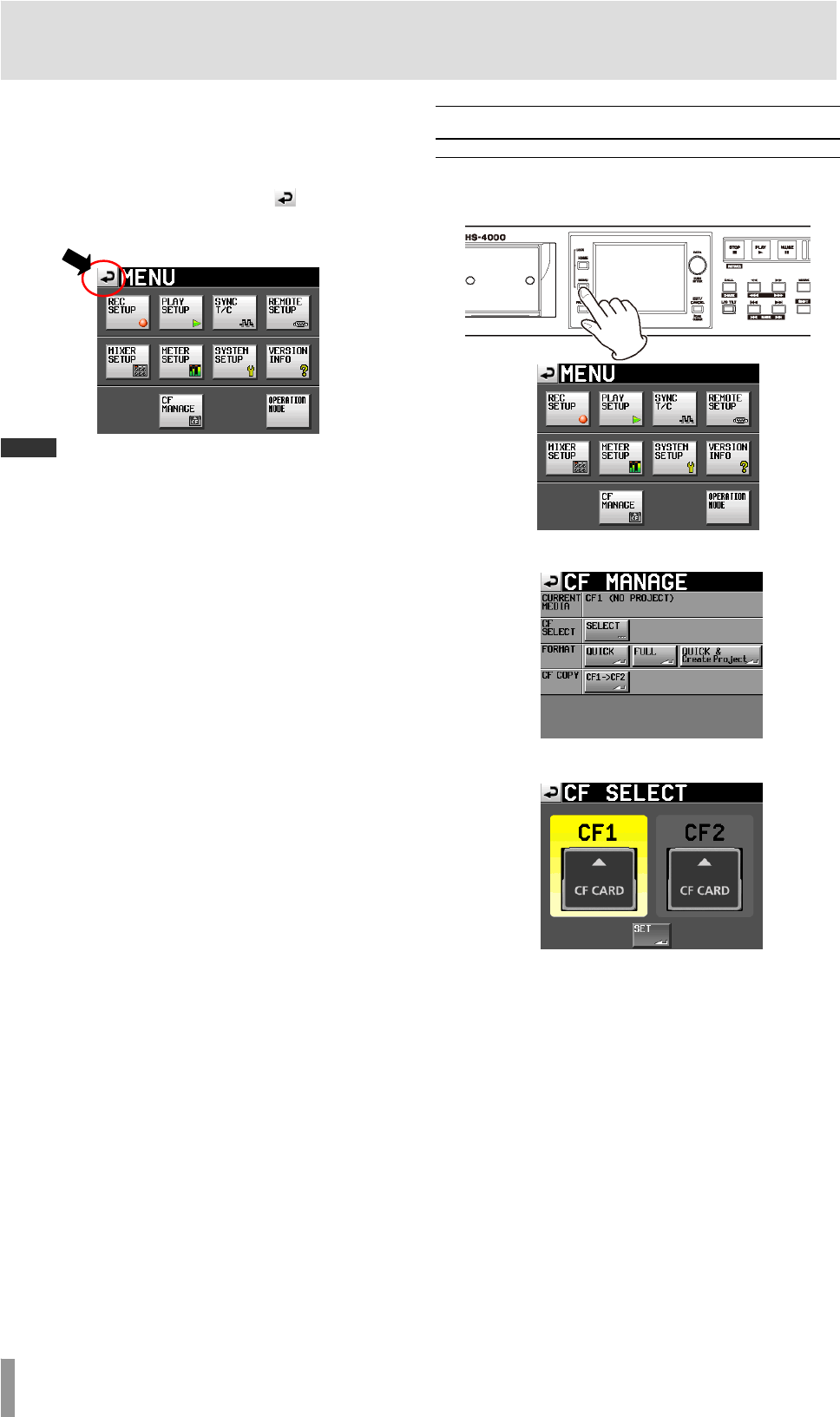

4 – Basic operation
In this chapter, we explain the basic operation procedures that
are the same in each operation mode.
The
display on this unit functions as a touchscreen.
Operate the unit using its keys, switches and touchscreen display
buttons.
On every screen except the Home Screen, a
button appears
at the top left. Touch this button to return to the previous screen.
NOTE
You can also return to the previous screen by pressing the EXIT/CANCEL
(PEAK CLEAR) key.
CF card preparation
CF card selection
1. Press the MENU key on the front panel to open the
MENU screen.
2. Touch the
CF MANAGE button to open the CF MANAGE
screen.
3. Touch the SELECT button next to the CF SELECT item
to open the
CF SELECT screen.
4. Touch the button for the CF card that you want to use to
select it. The background of the selected CF card appears
yellow.
5. Touch the SET button to return to the
CF MANAGE screen.
6. If you also want to format the CF card now, follow the
procedures starting with step 3 in “Formatting a CF card”
below.
