PICK-TO-LIGHT
MEASUREMENT & INSPECTION
TEMPERATURE
ULTRASONIC
LIGHT
GAUGING
RADAR
MEASURING LIGHT
SCREENS
A-GAGE
®
EZ-ARRAY
™

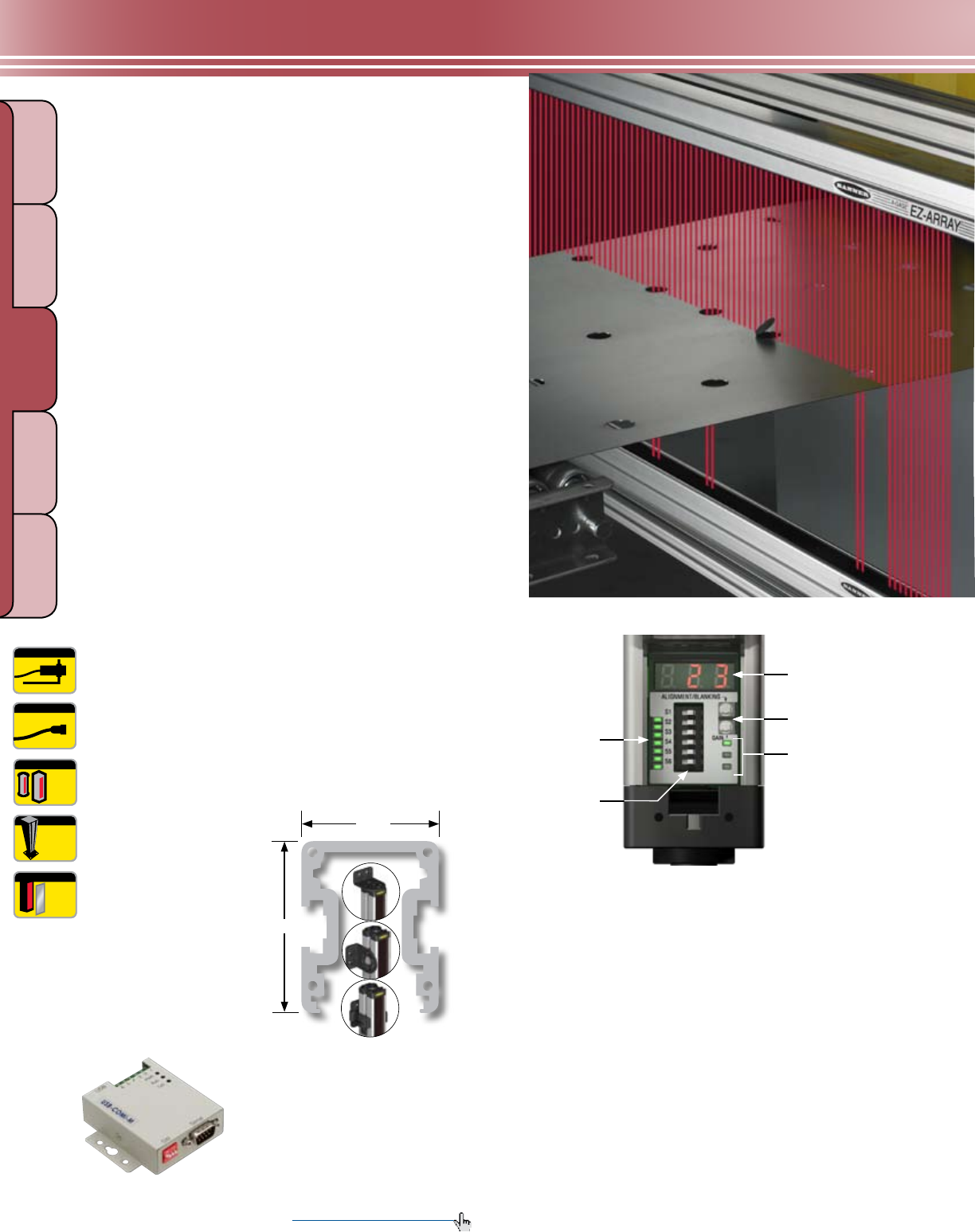

Two-Piece Measuring
Light Screens
High accuracy monitoring and inspection
EZ-ARRAY
™
excels at high-speed, precise process monitoring
and inspection, proling and web-guiding applications. It offers
quick and simple installation with the sophistication to handle the
toughest sensing applications.
• Two-piece design eliminates the needs for a
separate controller.
• Two push buttons are provided for gain method selection
and alignment/ blanking.
• High-excess-gain option for detecting opaque objects
and maximizing range in dirty environments.
• Edge resolution of 2.5 mm on opaque objects in single
and double edge scan mode.
• Low-contrast sensing of semi-transparent materials
and objects as small as 5 mm.
• Seven Zone LED’s provide instant alignment and beam
blockage information.
• Remote TEACH-wire option is included for alignment,
blanking, sensitivity, inverted display and DIP switch
enabled/disabled.
• Aluminum housing is compact and rugged for
demanding applications.
Versatile mounting
T-nut slots on both sides •
of the housing
Mount at end caps, •
housing side or both
45 mm
36 mm
Provides powerful configuration capabilities
• Straightforward applications can be configured using
six-position DIP switch on front of the receiver.
• Easy-to-use graphic user interface software is
included for advanced configuration using a PC
(USB serial adapter required–sold separately).
• Integrated 3-digit diagnostic display indicates
number of beams blocked, blanking configuration
and troubleshooting codes.
• Bicolor LEDs indicate system and serial
communication status.
• Array lengths range from 150 to 2400 mm.
• Working range is 400 mm to 4 m, with 5 mm
beam spacing.
PAGE 416
PAGE
436
PAGE
439
PAGE 373
8-Pin Euro
3-Digit Diagnostic
Display
Push button/Blanking
Bicolor LEDs
Zone
Indicators
DIP Switch
Configuration
INTUSB485-1 Serial Adapter
Optional USB sensor adapter
provides advanced configuration
using a PC (see page 448)
PAGE
441
