Short-range Laser Sensors

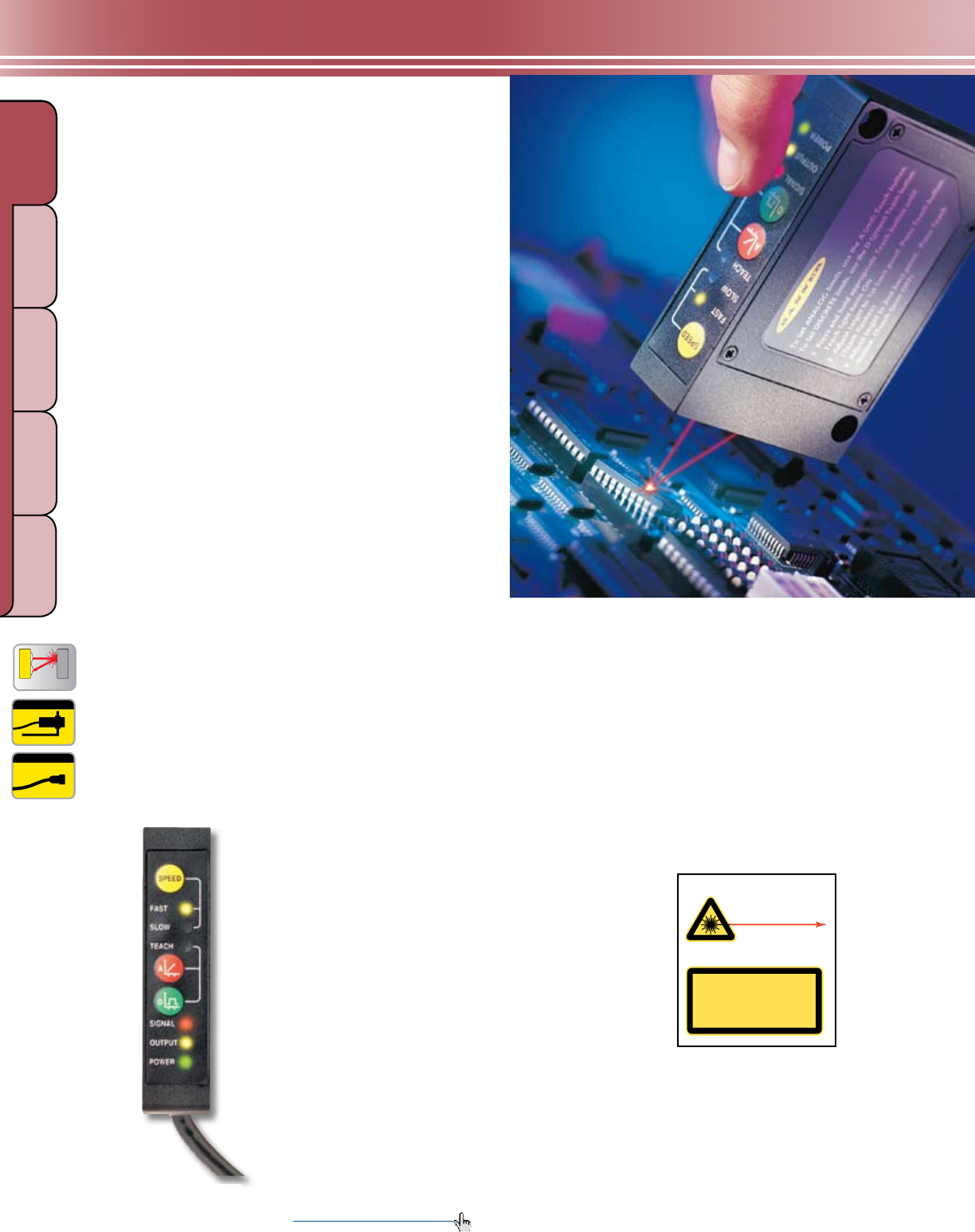

Extremely compact, self-contained design
The Banner L-GAGE
®
LG Series replaces large, two-piece
laser gauging sensors with a completely self-contained,
compact housing measuring only 55 x 82 x 20 mm.
• Features a one-piece design to conserve
production space
• Wires easily, decreasing setup time
• Provides a highly accurate solution at a much lower cost
• Does not touch parts it measures, so can be used with
moving processes, hot parts and sticky parts
Ultra-precise & flexible, with analog & discrete outputs
Advanced digital signal processing algorithms make
the LG Series Class 2 modulated visible laser gauging
sensor a powerhouse of performance for a wide range of
measurement applications.
• Features an outstanding maximum resolution of 3 µm for
flat white targets
• Uses an ultra-narrow beam for applications requiring
precise measurement of distance, height or thickness as
well as gauging applications
• Lets you pick the exact range you need with the
push of a button
• Houses discrete (switched) and analog outputs in
the same unit, each independently programmable
Push-button setup for custom-sized sensing windows
Unlike older, inflexible, fixed-range technology, Banner’s
TEACH-mode programming lets you set your own
custom-sized sensing windows anywhere within the
measuring range, using just one push button.
• Available ranges of 45 to 60 mm and 75 to 125 mm
• Can be programmed for analog output, discrete
output or both simultaneously with independently
controlled sensing window limits
RADIANT POWER 0.2 mW
9.8KHz 11-20% DUTY CYCLE
660 - 680 nm
COMPLIES WITH 21 CFR
1040.10 AND EN60825-1:1994
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
LASER LIGHT
Avoid exposure -
laser light emitted
from this aperture
