MEASUREMENT & INSPECTION
MEASURING LIGHT
SCREENS
TEMPERATURE
LIGHT
GAUGING
RADAR
ULTRASONIC
U-GAGE
®

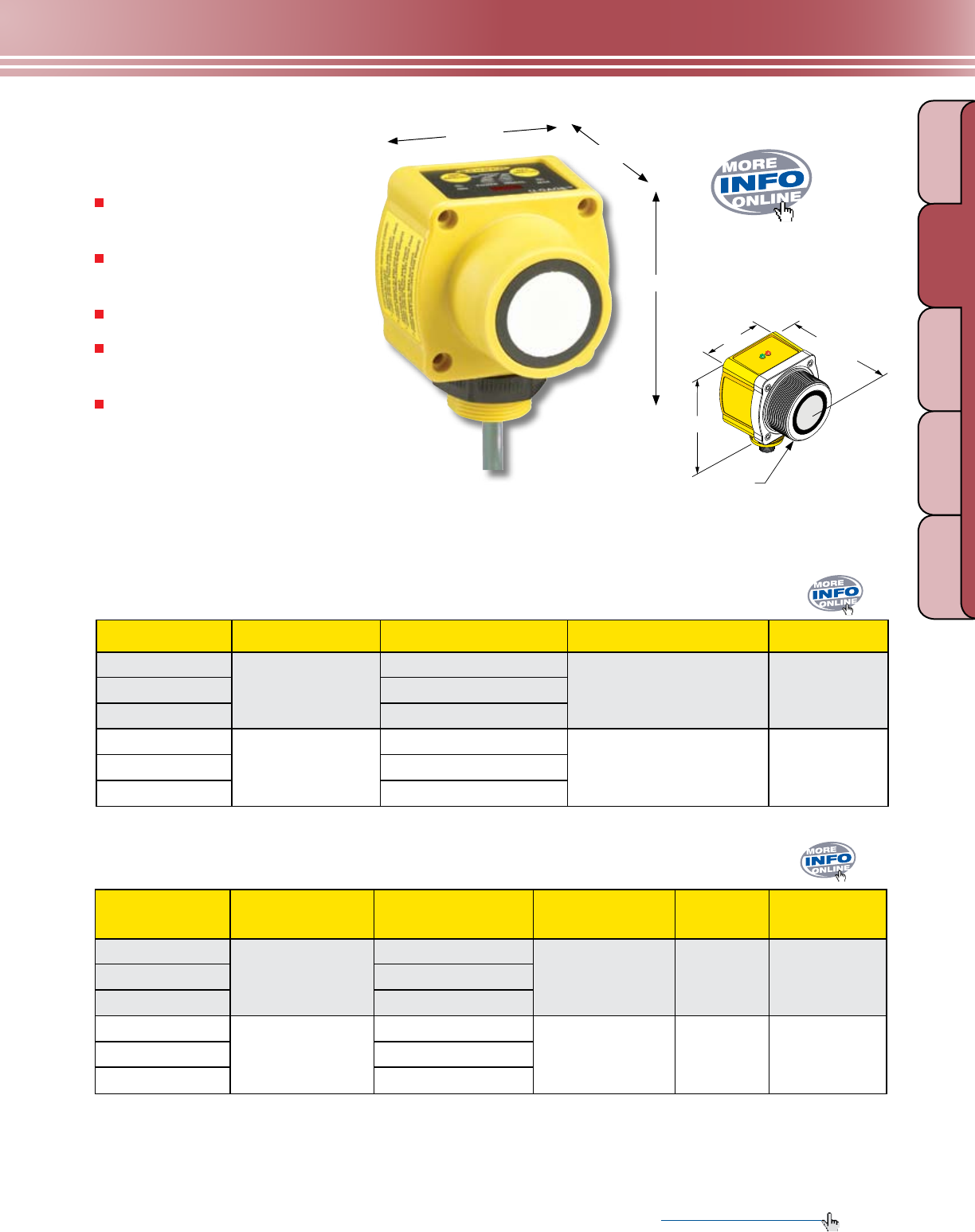

QT50U Sensors
Push-button TEACH programming for
easy setup
Rugged encapsulated design for
harsh environments
Cabled or quick-disconnect models
Bright LED status indicators for
setup and operation
QD cables with shield, ordered separately
(see pages 415, 419 and 421)
U-GAGE
®
QT50U, 10-30V dc
Models* Range Cable** Output Data Sheet
QT50ULB
200 mm - 8 m
2 m
Selectable:
0 to 10V dc
or 4 to 20 mA
70137
QT50ULBQ
5-pin Mini QD
QT50ULBQ6
5-pin Euro QD
QT50UDB
200 mm - 8 m
2 m
Selectable
Dual NPN
or PNP
110112
QT50UDBQ
5-pin Mini QD
QT50UDBQ6
5-pin Euro QD
74.1 mm
67.4 mm
84.2 mm
DC and Universal Voltage Models
Teflon
®
-protected Models
(Suffix -CRFV)
Teflon
®
is a registered trademark of Dupont
™
.
74.1 mm
73.1 mm
85.2 mm
M56 x 1.5
U-GAGE
®
QT50U Universal Voltage, 85-264V ac/24-250V dc
Models* Range Cable*
Output
Operation Mode Output Data Sheet
QT50UVR3W
200 mm - 8 m
2 m
Window-limit
(complementary
outputs)
SPDT
e/m relay
117764
QT50UVR3WQ1
5-pin Micro QD
QT50UVR3WQ
5-pin Mini QD
QT50UVR3F
200 mm - 8 m
2 m
Pump/level control
(pump-in and
pump-out logic)
SPDT
e/m relay
117764
QT50UVR3FQ1
5-pin Micro QD
QT50UVR3FQ
5-pin Mini QD
* For sensors with Teflon
®
-protected face and transducer, add suffix -CRFV to the model number (example, QT50ULB-CRFV). See data sheet part number 122155 for additional info.
** For 9 m cable, add suffix W/30 to the 2 m model number (example, QT50ULB W/30). A model with a QD requires a mating cable (see pages 415, 419 and 421).
