U-GAGE
®

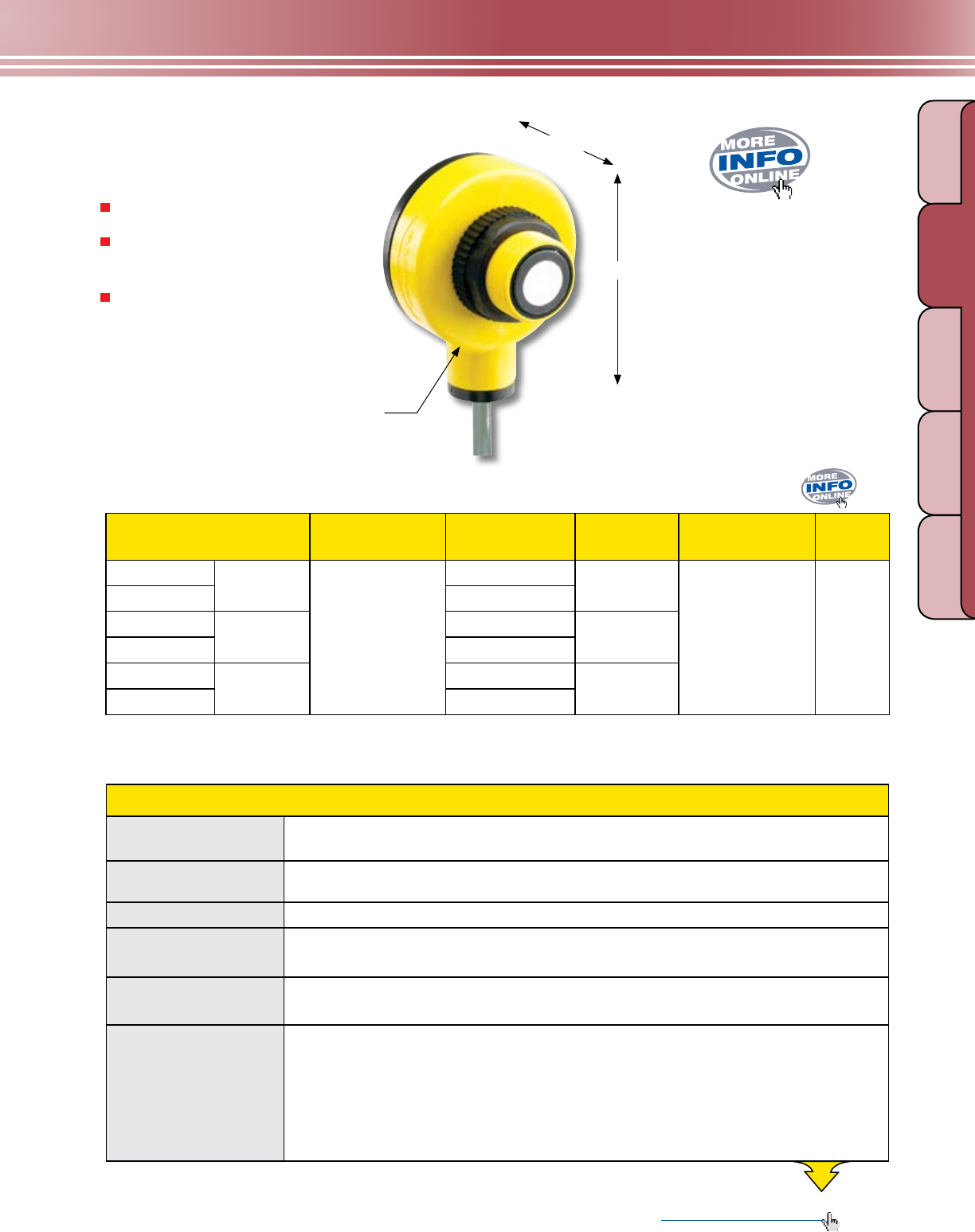

T18U Sensors
Dual LED indicator system (receiver)
2 m or 9 m attached cable, or
4-pin Euro-style quick-disconnect
Patented T-style right-angle sensor
package with 18 mm threaded barrel
U-GAGE
®
T18U, 12-30V dc
Models* Range Cable** Output
Response
Time
Data
Sheet
T186UE
Emitter
NORMAL resolution:
600 mm
HIGH resolution:
300 mm
2 m
—
NORMAL resolution:
2 ms
or
HIGH resolution:
1 ms
40124
T186UEQ
4-pin Euro QD
T18VN6UR
Receiver
2 m
NPN
T18VN6URQ
4-pin Euro QD
T18VP6UR
Receiver
2 m
PNP
T18VP6URQ
4-pin Euro QD
* Sensor pair requires one emitter and one receiver.
** For 9 m cable, add suffix W/30 to the 2 m model number (example, T18VN6UR W/30). A model with a QD requires a mating cable (see page 412).
U-GAGE
®
T18U Specifications
Sensing Range
(no minimum range)
NORMAL resolution mode: to 600 mm
HIGH resolution mode: to 300 mm
Supply Voltage
12 to 30V dc, 10% max. ac ripple.
50 mA (emitters); 35 mA (receivers), exclusive of output load.
Ultrasonic Frequency
Ultrasonic, 230 kHz
Minimum spacing
(adjacent pairs)
50 mm for emitter-to-receiver separations of up to 150 mm.
Add 10 mm of adjacent-pair spacing for every 100 mm of emitter-to-receiver spacing beyond 150 mm.
Receiver Output
Configuration
T18VN models: NPN sinking, NO and NC (complementary)
T18VP models: PNP sourcing, NO and NC (complementary)
Receiver Output Rating
150 mA max. each output at 25° C, derated to 100 mA at 70° C (derate ≈ 1 mA per ° C).
Both outputs may be used simultaneously.
ON-state saturation voltage: less than 1.5V at 10 mA; less than 2.0 V at 150 mA
OFF-state leakage current: less than 1 µA at 30V dc
Output protection: Overload and short-circuit protected.
No false pulse upon receiver power-up: false pulse protection causes a 100 millisecond delay upon
power-up.
30.0 mm
51.5 mm
ø 40.0 mm
