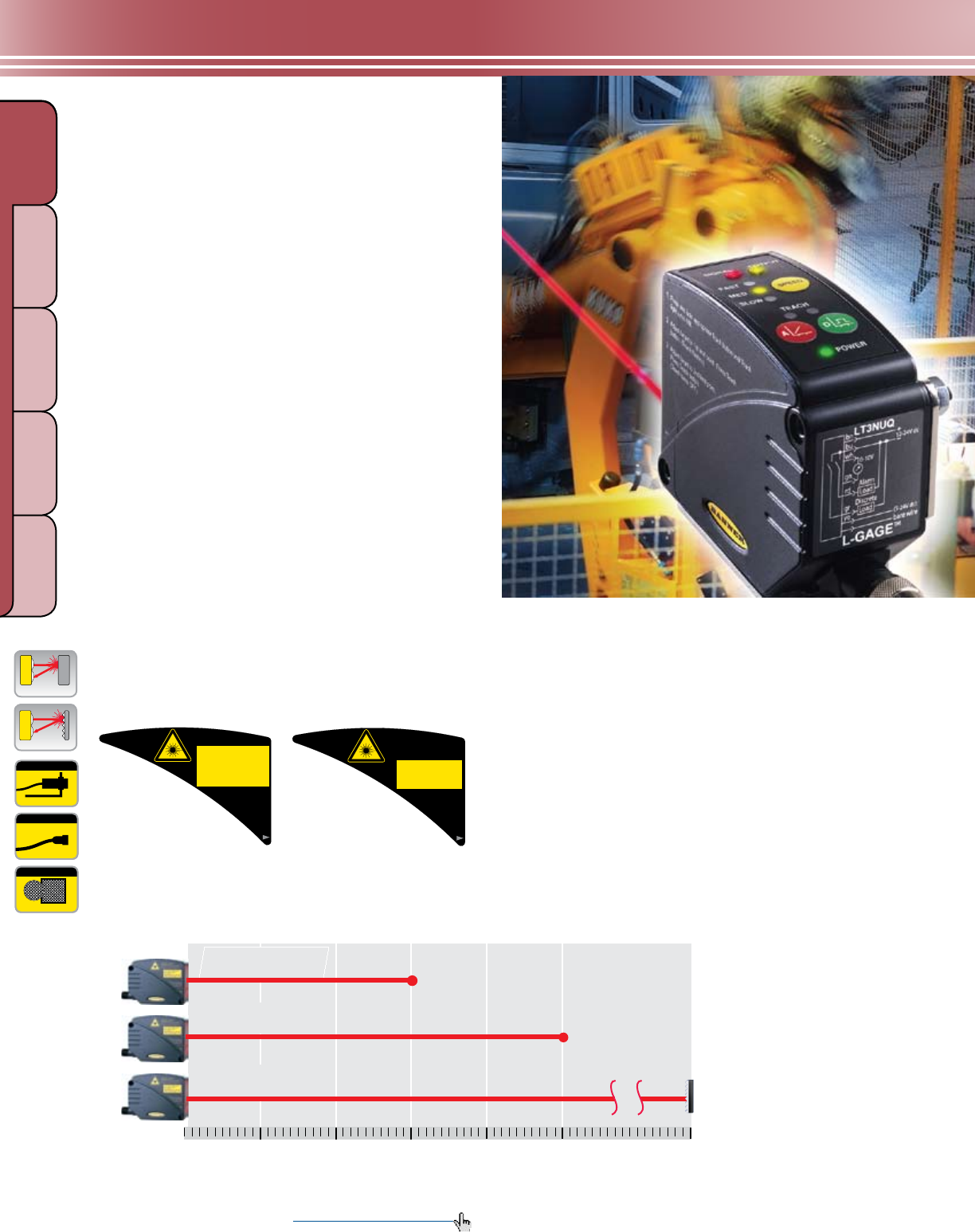

L-GAGE
®
LT3
Laser Distance-
Gauging Sensors
Advanced time-of-flight technology at less cost
The L-GAGE
®
LT3 sensor uses “time-of-ight” technology
for precise, long-distance gauging at the speed of light.
The microprocessor-controlled laser distance-gauging
sensor features a unique design for exceptional accuracy
and range at a much lower cost than competitive laser-
gauging devices. Precise performance and low price
make the LT3 an ideal solution for a variety of precision
inspection applications.
• Available in accurate diffuse-mode models with ranges
to 5 m and retroreflective models with a 50 m range
• Emits one million pulses per second
• Reliably detects angled targets
Analog & discrete outputs, or dual-discrete models
The LT3 can include both a discrete (switched) output
and an analog output in the same unit, with independently
programmable window limits. For added exibility, the
analog output is available in a choice of 4 to 20 mA
or 0 to 10V dc. You can also choose models with two
independent discrete outputs, selectable PNP (sourcing)
or NPN (sinking).
PAGE 416
PAGE 425
8-Pin Euro
LT3 Sensing Ranges
Meters
1 2 3 4 5 . . . 50
Diffuse models with
white targets: 0.3 - 5 m
Retroreective models with
retroreector: 0.5 - 50 m
Diffuse models with
gray targets: 0.3 - 3 m
PAGE 370
RADIANT POWER 0.15mW
10ns PULSE, 1MHz
650 - 670
nm
Complies with IEC 60825-1:
and 21 CFR 1040.10 & 1040.
except for deviations purs
Laser Notice No. 50, date
July 26, 2001
LASER LIGHT
CLASS 1 LASER PRODUCT
Laser ligh
RADIANT POWER 0.5mW
10ns PULSE, 1MHz
650 - 670 nm
COMPLIES TO 21 CFR PART
1040.10 AND EN60825-1:1994
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Avoid exposure- las
Class 1 Label Class 2 Label
Compact, self-contained design
• The LT3’s design conserves production space and
decreases setup time.
• The self-contained system measures just 68.5 by 35.3
by 87.0 mm, to fit and function in tighter spaces than
competitive systems.
Simple 3-step programming
Programming the LT3 takes just three short steps, which
are conveniently printed on the side of the sensor. In
addition, push-button TEACH-mode programming sets
custom sensing windows. And remote programming
offers added security and convenience.
