U-GAGE
®
S18U
Compact
Ultrasonic Sensor
On-board diagnostics
The highly accurate U-GAGE
®
S18U is the industry’s
rst compact ultrasonic sensor with push-button TEACH
programming and diagnostic LEDs integrated right into the
housing. The S18U small size doesn’t limit its accuracy. It is
unaffected by target color and has all the features of much
larger sensors:
• Integrated diagnostic LEDs and push-button
programming
• Minimal dead zone
• Retrosonic sensing mode
• Temperature compensation circuitry
• Programmable background
suppression
• Analog and discrete versions
Two housing styles
• Available in straight or right-angle versions with a
wide variety of mounting hardware for enhanced
sensing versatility
• Ideal for material handling and packaged goods
applications, such as bottling or liquid level detection
and control for small containers
• Senses from 30 to 300 mm
Integrated push-button programming
Program the unit with its integrated TEACH-mode push
button or remote TEACH wire. Bright LEDs indicate status
during setup and offer visual diagnostics during operation.
Congure a set sensing window, background suppressed
sensing or retrosonic mode for detecting any object
regardless of shape, angle or size.
Power/Signal Strength
Output/TEACH Indicator
TEACH Push
Button

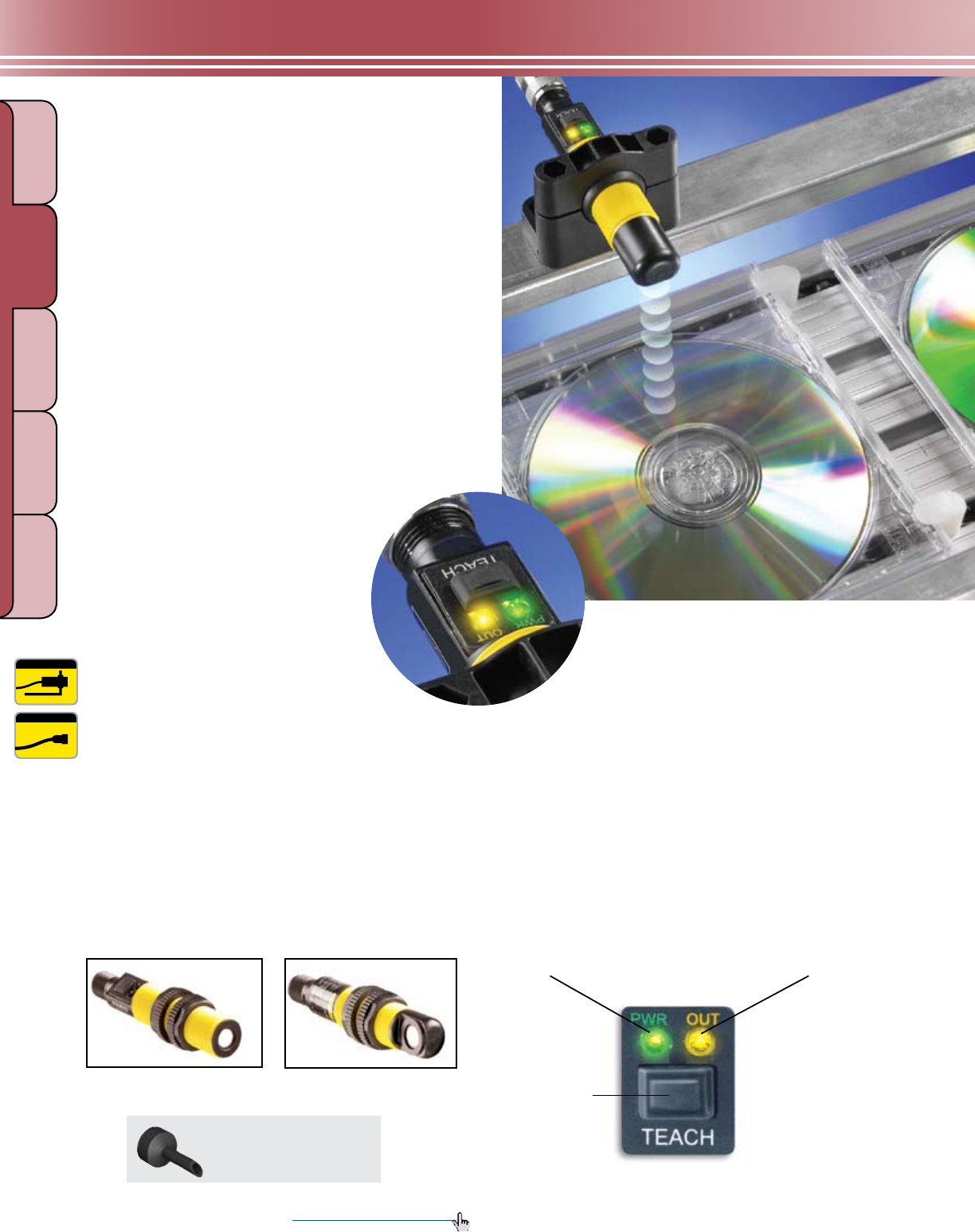

Straight Right Angle
PAGE 415
PAGE 373
5-Pin Euro
Accessory wave guides are available
for narrowing sensing beam.
(see page 445)
