WORLD-BEAM
®

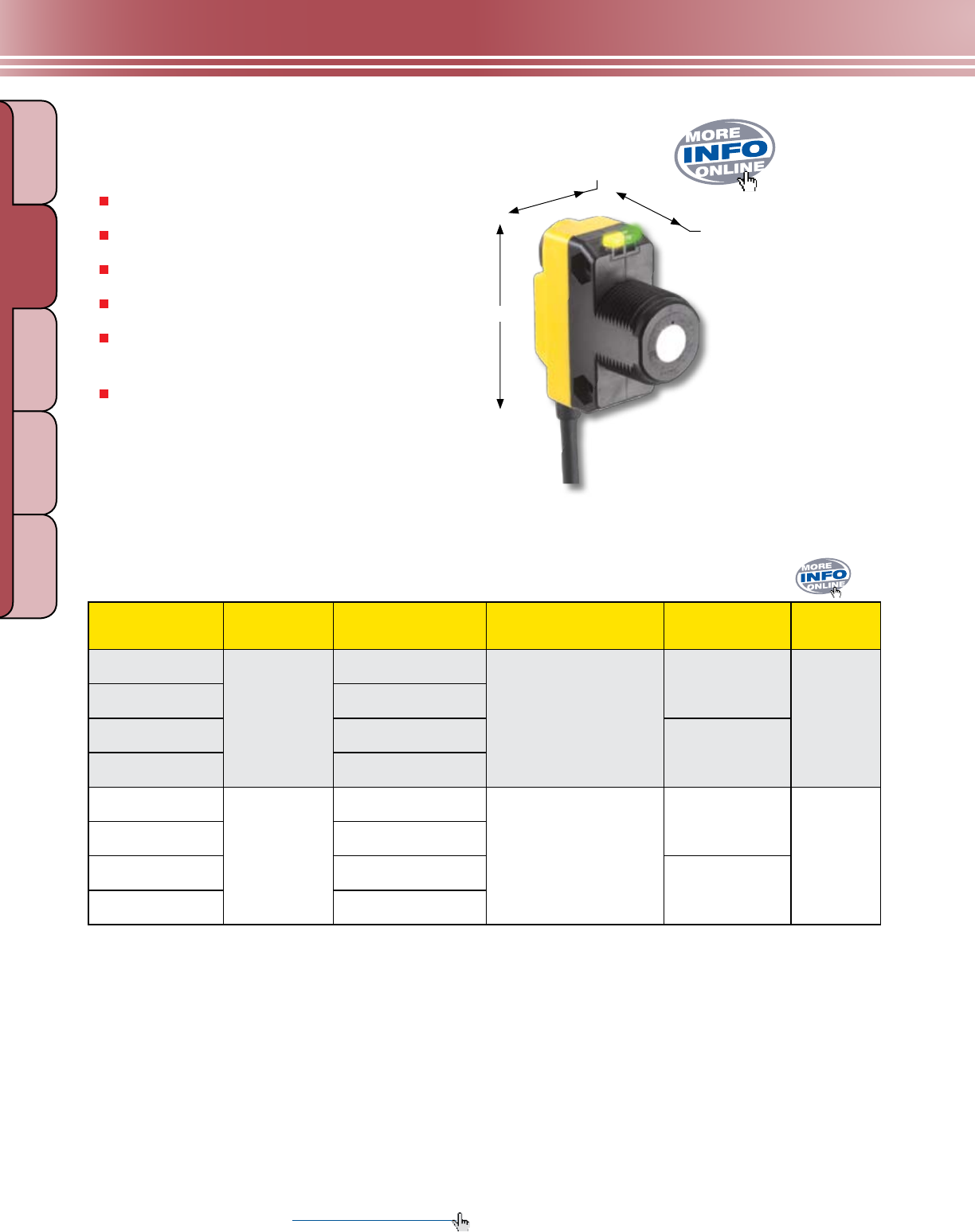

QS18U Sensors
Bicolor LED indicator for power and signal strength
Bicolor LED indicator for TEACH/output
Choice of cables and connectors
Rugged, ultra-compact housing
4-pin Pico- or Euro-style QD cables with shield
ordered separately (see pages 411 and 412)
Optional wave guides for narrowing
sensing beam (see page 444)
WORLD-BEAM
®
QS18U, 12-30V dc
Model Range Cable*
TEACH
Options Output
Data
Sheet
QS18UNA
50 - 500 mm
2 m
Integral push button
and remote TEACH
(IP67; NEMA 6P)
NPN
119287
QS18UNAQ8 4-pin Euro QD
QS18UPA 2 m
PNP
QS18UPAQ8 4-pin Euro QD
QS18UNAE
†
50 - 500 mm
2 m
Remote TEACH
(epoxy-encapsulated,
IP68; NEMA 6P)
NPN
119287
QS18UNAEQ8
†
4-pin Euro QD
QS18UPAE
†
2 m
PNP
QS18UPAEQ8
†
4-pin Euro QD
* For 9 m cable, add suffix W/30 to the 2 m model number (example, QS18UNA W/30). A model with a QD requires a mating cable (see pages 411 and 412).
QD models:
• For 4-pin integral Euro-style QD, add suffix Q8 (example, QS18UNAQ8). • For 4-pin 150 mm Euro-style pigtail, add suffix Q5 (example, QS18UNAQ5).
• For 4-pin integral Pico-style QD, add suffix Q7 (example, QS18UNAQ7). • For 4-pin 150 mm Pico-style pigtail, add suffix Q (example, QS18UNAFQ).
†
Models are epoxy-encapsulated, IP68; NEMA 6P with remote TEACH programming
15.0 mm
33.5 mm
41.5 mm
