2. Gently push the front of the power supply to ensure that it is fully seated.
3. Repeat step 1 on page 42 and step 2 to replace the second power supply.
Replacing a fan and communications module
Complete the following steps to replace the fan and communications module that
you removed before the installation:
1. Grasp the fan and communications module with both hands and completely
slide the module into the chassis slot, as shown in Figure 26.

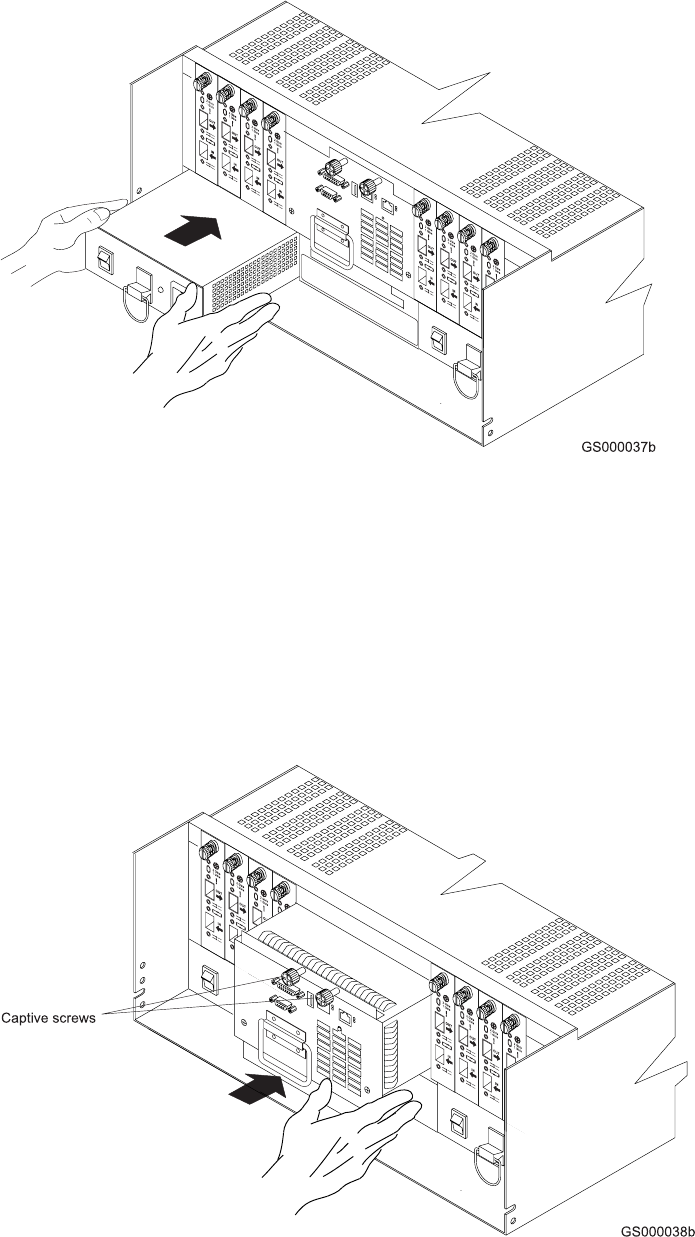

Figure 25. Replacing a power supply
Figure
26. Replacing a fan and communications module
Chapter 2. Installing the storage subsystem 43
