10 TASCAM DP-32SD
2 - Quick Guide

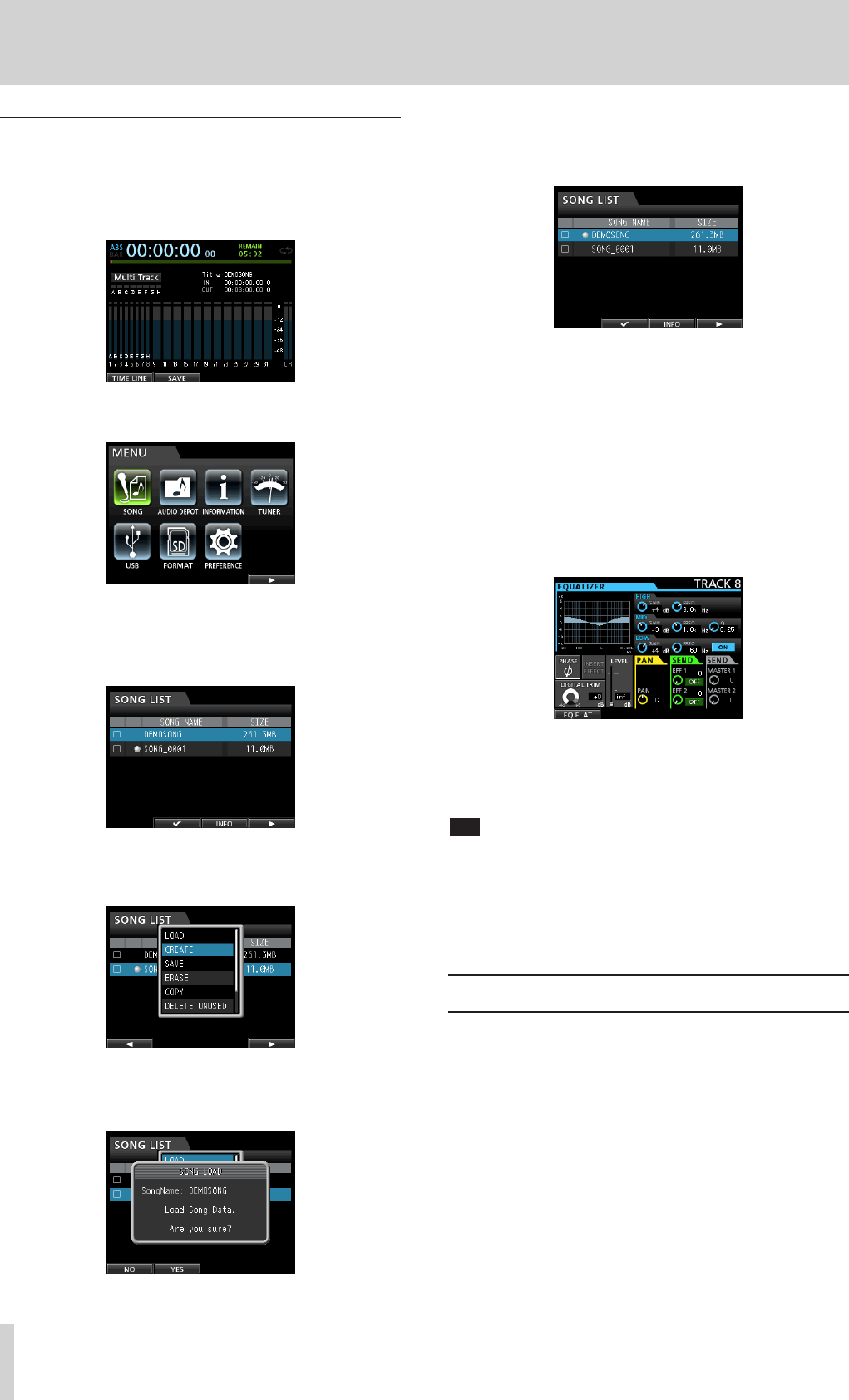

Listening to the demo song
The included SD card in the unit contains a demo song. We
will use this demo song to practice listening to and mixing a
recording.
1. Press the HOME button to open the Home screen.
2. When the recorder is stopped, press the MENU button to
open the
MENU
screen.
3. Use the JOG/DATA dial or the CURSOR (5/b/g/t)
buttons to select (highlight green)
SONG
, and then press the
F4 (t) button.
The
SONG LIST
screen opens.
4. Use the JOG/DATA dial or the CURSOR (5/b) buttons to
select
DEMO SONG
, and then press the F4 (t) button to
open a menu list.
5. Use the JOG/DATA dial or the CURSOR (5/b) buttons to
select
LOAD
, and then press the F4 (t) button.
The
SONG LOAD
pop-up window appears.
6. Press the F2 (
YES
) button to load the demo song.
The demo song is loaded and the window closes, but the
SONG LIST
screen remains open.
7. Press the HOME button to return to the Home screen.
8. Press the PLAY (t) button, and raise the levels of the track
and STEREO faders and the MONITOR LEVEL knob to listen
to the demo song.
The STEREO fader adjusts the overall volume of the mixer
output. When the STEREO fader is at 0dB the overall level is
neither increased nor decreased.
Use the track faders to adjust the balance of the tracks.
Use the MONITOR LEVEL knob to adjust the final
monitoring volume.
9. Press the MIXER button to open the
Mixer
screen.
10. Press a SOURCE buttons to select an input (A-H) or press a
SELECT button to select a track to be set. Then use the PAN
knob to set the stereo position of that input or track. Repeat
for other inputs and tracks.
TIP
•
Press the STOP (8) and REW (m) buttons at the same time
to use the TO ZERO function to return to the beginning of the
song (ZERO point).
•
If you press the wrong button and open a different screen, you
can press the HOME button to return to the Home screen at any
time.
Recording and mastering
In this section we will practice multitrack recording.
Here we will explain how to connect electric guitars to INPUT H
and external microphones to INPUT B.
In the following example, we will explain how to record an
electric guitar rhythm part to track 1 and a lead guitar part to
track 2. Then, we will use an external microphone to record
vocals to track 3. Finally, we will mix down the tracks to stereo.
We will assume that you have already followed the instructions
in the previous section, and that you have connected
headphones or other monitoring equipment, started the unit
and inserted an SD card.
