Ejecting Cartridges Through the CAP
4. Enter the cartridges into the magazine so they lie flat, with the bar code up and the
reel facing away from you.
5. Return the magazine to its closed position. (If a retention cover is used on the
magazine, remove the cover before replacing the magazine.)
6. Press the CAP A or CAP B button on the operator panel to close the CAP.
Ejecting Cartridges Through the CAP
To unlock the CAP, open the CAP, and remove the cartridges from it:

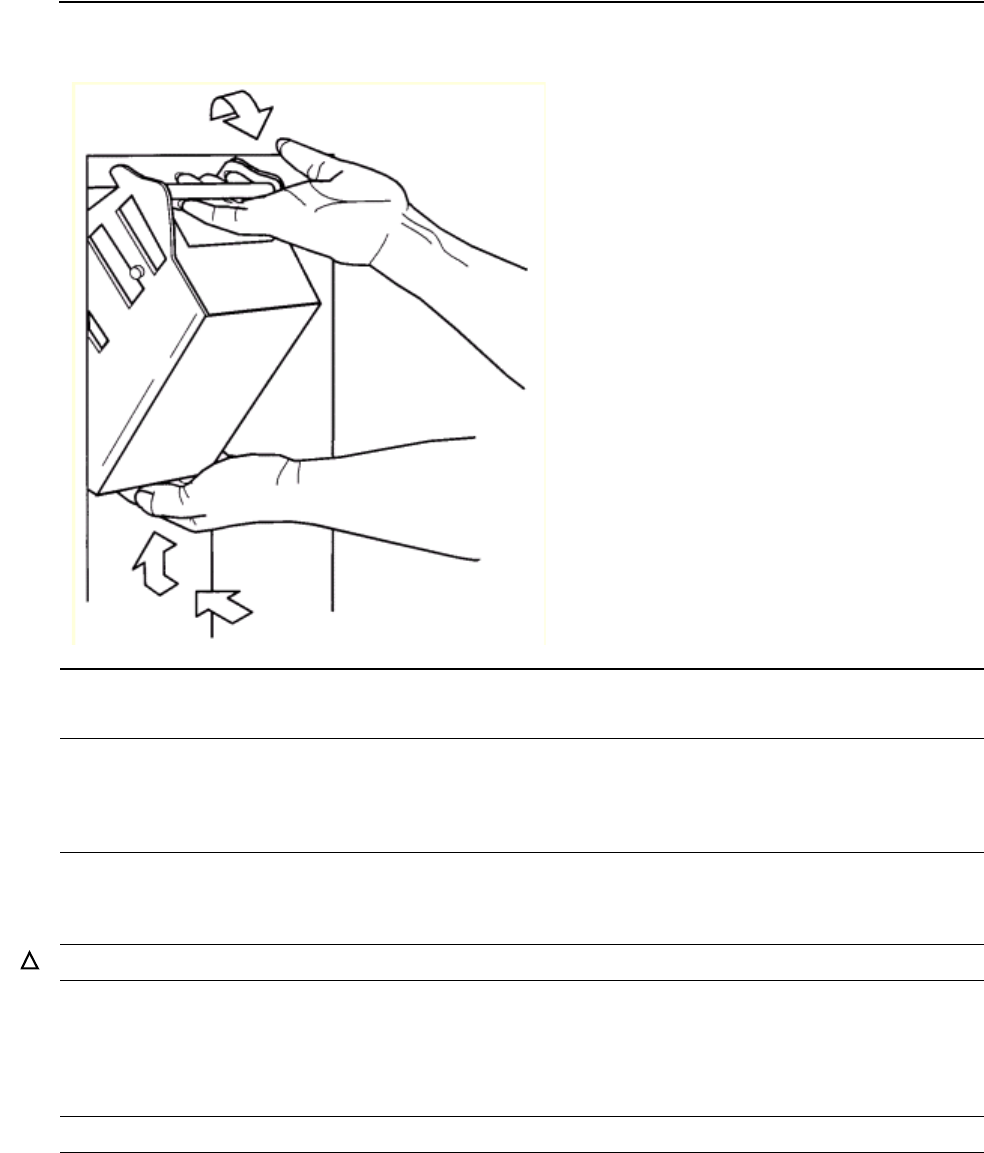

Figure 4-16. Removing the CAP Magazine
Note. The snap-on retention cartridge cover can be used to keep cartridges in place when
carrying the magazine. Remove the clear cover from the back of the magazine by lifting the
side edge. To protect the cartridges, place the slots on one edge of the cover into the grooves
on the side of the magazine’s top panel and snap the other edge into place.
Caution. Remove the retention cover before loading the magazine into the CAP.
Note. It is strongly recommended that unlabeled cartridges are not entered into the CAP.
