Installing and Configuring the Tape Drive for the
NonStop NS-Series Server
9840 Tape Drive Operations Guide—429596-002
C-4
Installation
3. Connect one end of the fiber cable to the small form-factor pluggable (SFP) on the
unit. See Figure C-4 for the location.
4. Attach the power cord to the Fibre Channel to SCSI router’s AC power receptacle
(see Figure C-4 for location), and then plug the other end into an AC power outlet.
Note. The router does not have protection against lightning surges. Customers located in high
risk areas should use external surge protection rated for use in their location and be able to
handle the power demand of the router.

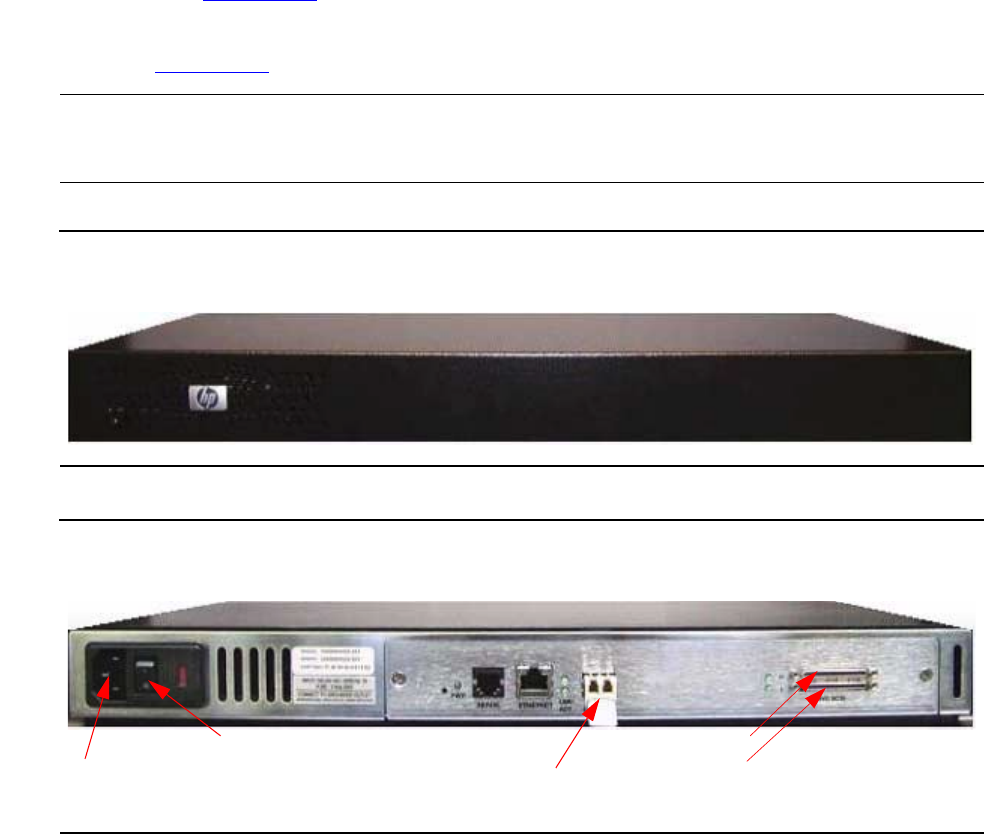

Figure C-3. Front View of the Fibre Channel to SCSI Router
Figure C-4. Rear View of the Fibre Channel to SCSI Router
Port 0
Port 1
Small Form-Factor
Pluggable (SFP)
Receptacle
AC Power
Power
Switch
