Installing and Configuring the Tape Drive for the
NonStop NS-Series Server
9840 Tape Drive Operations Guide—429596-002
C-3
Installation
Installation
1. Connect the small end of the SCSI cable to the Fibre Channel to SCSI router on
port 0. For the port location, see Figure C-4 on page C-4.
2. Tighten the screws by hand to secure the cable to the unit. Do not use a
screwdriver.
Table C-1. SCSI Cable Part Numbers and Descriptions
Product
Number
Part
Number Description
520-001 529794-001 CBA, 1 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-003 529795-001 CBA, 3 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-010 529796-001 CBA, 10 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-015 529797-001 CBA, 15 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-020 529798-001 CBA, 20 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-023 529799-001 CBA, 23 meter, VHDCI 68P to HD 68P, HVD SCSI Cable

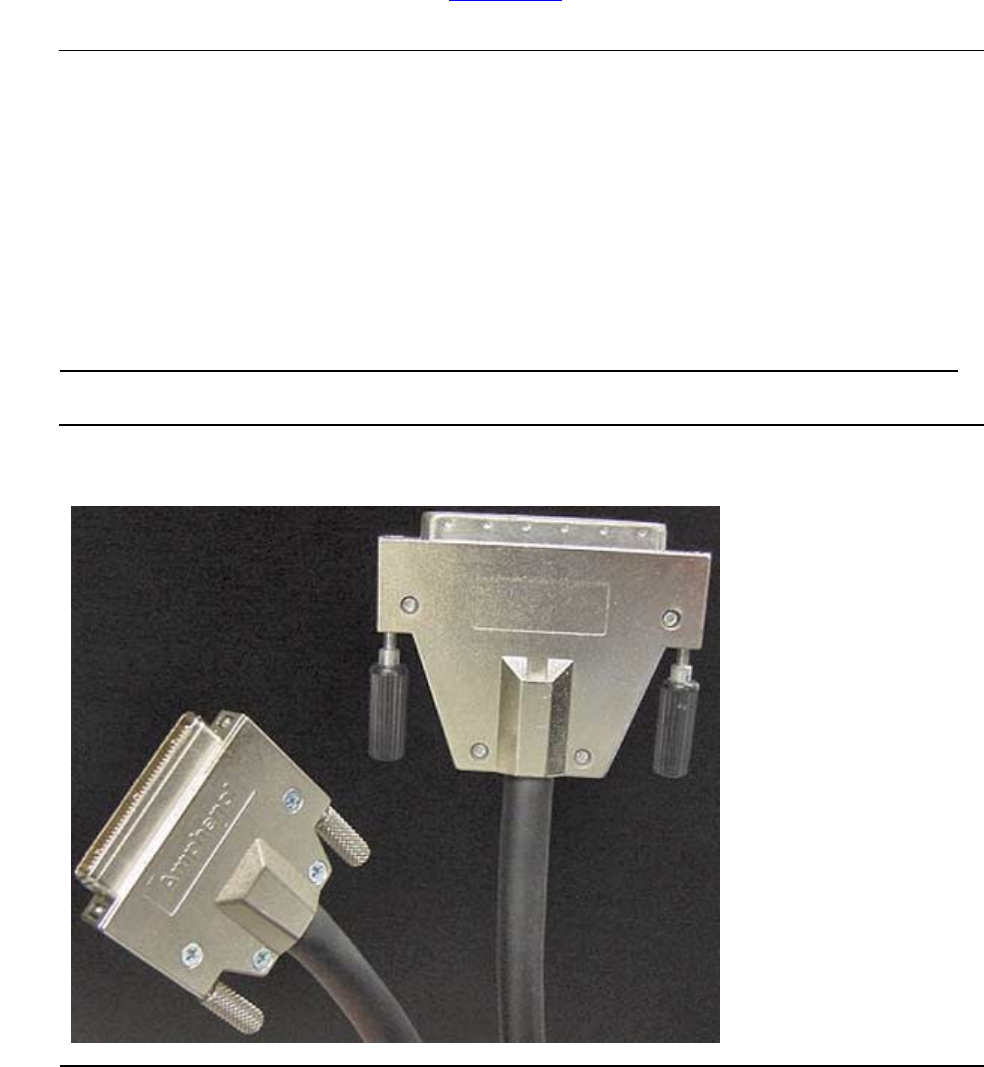

Figure C-2. SCSI Cable
