Installing and Configuring the Tape Drive for the
NonStop NS-Series Server
9840 Tape Drive Operations Guide—429596-002
C-6
Installation
6. Tighten the screws by hand to secure the cable to the unit. Do not use a
screwdriver.
7. Connect the supplied differential terminator to SCSI port 2. See Figure C-6
for the
location.
8. Tighten the screws by hand to secure the terminator to the tape drive. Do not use a
screwdriver.
9. Attach the power cord to the tape drive’s AC power receptacle (see Figure C-6 for
location), and then plug the other end into an AC power outlet.

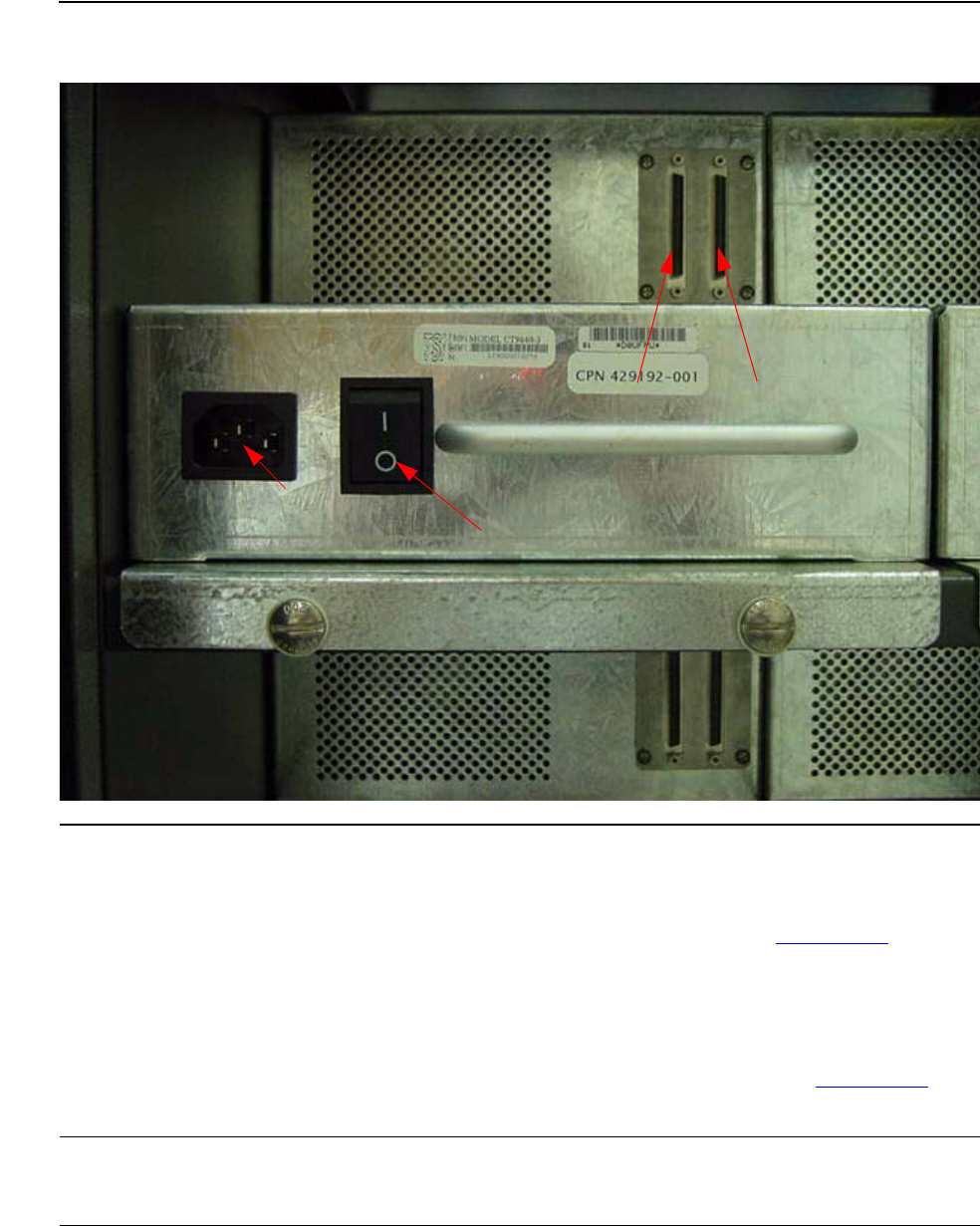

Figure C-6. Rear View of the Tape Drive
Note. The tape drive does not have protection against lightning surges. Customers in high risk
areas should use external surge protection rated for use in their location and be able to handle
the power demand of the tape drive.
Port 2 Port 1
Power Switch
AC Power
Receptacle
