2)Use the UP/DOWN scroll button to select the desired item from Review Data
menu, and press ENTER.
• If no data from a previously tested vehicle is recorded, only Module Present
data containing module ID and protocol type can be reviewed.
3)Review selected data on screen.
• If there is no data stored for selected item, a “Not Supported or Stored
No Data!” message shows on the screen.
5. OBD II Diagnostics
When more than one vehicle control module is detected by the scan tool, you
will be prompted to select the module where the data may be retrieved. The
most often to be selected are the Powertrain Control Module [Engine] and
Transmission Control Module [Transmission].

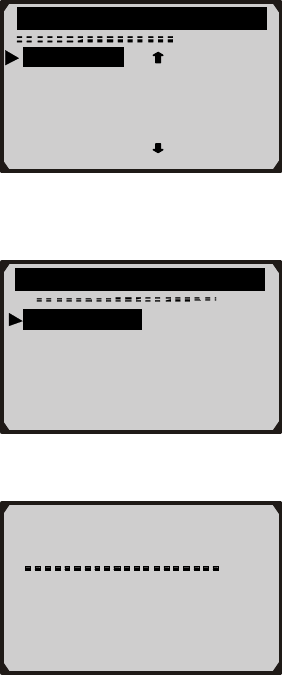

Review Data
1/9
? Stored Codes
Pending Codes
Live Data
Freeze Frame
I/M Readiness
O2 Monitor Test
Review Data
Review Data
1/1
? Modules Present
?
Review Data
$09 1/6
P0118 Generic
Engine Coolant Temperature
Sensor 1 Circuit High
