Lowrance - LHR-80 Installation and Operation Instructions 15
This radio supports NMEA0183 for outputting the GPS signal. You can use the GPS connector
to connect the radio and some GPS navigation receiver, such as chart plotter.
Insert one single port of the GPS connector cord into the NMEA socket of the cradle 1.
charger.
The other port of the GPS connector, which is branched into two wires, connects to the 2.
GPS navigation receiver. Red means NMEA OUT(+); Black means NMEAOUT(-).
Wire Color Function
Red NMEA OUT(+)
Black NMEA OUT(-)

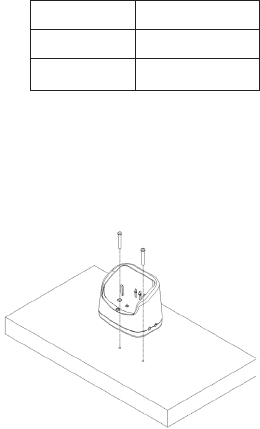

3-1-4 Mounting Battery Charger to flat surface
You can mount the battery charger straight onto solid surface. Make sure that the surface can
be penetrated and is strong enough to hold permanantly in place.
To mount the battery charger onto a flat surface, insert screws into place-holders and turn in
a clockwise motion until firmly locked into place.
3-1-5 Mounting Battery Charger and bracket onto wall
You can also mount the battery charger onto wall by using the provided bracket and screws.
Insert screws into bracket, and turn in a clockwise motion until locked firmly into place. 1.
Insert screws into battery charger and mount it to bracket. Turn screws in clockwise 2.
motion until firmly locked into place.
