To obtain High Definition Playback of High Definition Content, we recommend you to connect your High Definition Display with an HDMI Cable. HDMI supports
Standard, Enhanced, or High-Definition video, plus Multi-Channel Digital Audio in a single cable. Many sources of High Definition Video (as well as DVD upscaling
require that the display product supports HDCP, which is an encryption format used on HDMI and DVI-D signals. To find out if your display device supports HDCP,
please consult its manual. If your television does not support HDMI but has a DVI-input, a DVI to HDMI converter can be purchased separately.
If you do NOT own a High Definition Display, we recommend connecting your player to your television using the SCART cable that comes with your player. The SCART cable is
the thickest cable with the large connectors in the ends. The SCART cable covers various analog video formats up to RGB quality, and analog Stereo audio. Connect one end
of the SCART cable to “SCART OUT” on your player. Connect the other end to the SCART input on your television. Connect the power cable to the power connector.
If your television does not have an HDMI or SCART connector, you will have to connect both audio and video with separate cables as follows:
For connecting video, you have the following options:
• VIDEO (Composite Video)
• S-VIDEO (or “Super-VHS”, provides a better quality than VIDEO)
• COMPONENT VIDEO (provides an even better quality than the above)
After connecting the video, you will have to connect the audio. You can connect the audio to either the television or your Hi-Fi Stereo or Audio/Video Surround System. The
DP-600 outputs both analog and digital audio. Analog stereo audio is the most common format, and is supported by, in practice, all devices. For Surround setup, Digital Audio
Output is recommended as connection to all Surround Amplifiers and A/V-Receivers.
For connecting the audio, you have the following options:
• Connect ANALOG AUDIO OUT to your television using phono (RCA) jacks
• Connect ANALOG AUDIO OUT to your HiFi stereo using phono (RCA) jacks
• Connect COAXIAL or OPTICAL digital audio output to your Surround Amplifier or A/V-Receiver
4
Connecting your Player

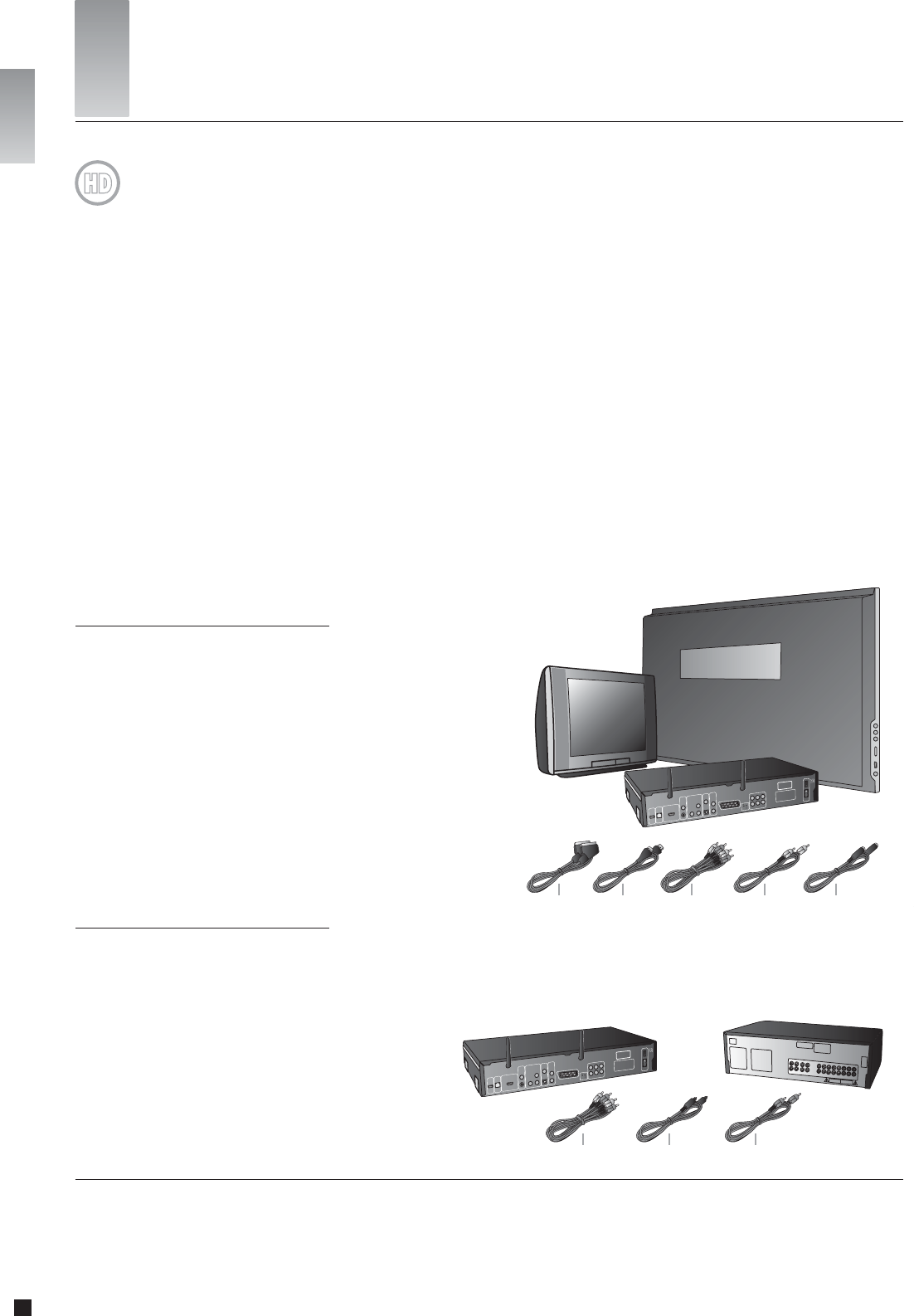

Connecting your KiSS DP-600 DVD & Media Player to your TV can be done using any of the cables below.
(Only one cable can be connected at a time)
Video connection
a. RGB via SCART
b. HDMI (the cable is an extra accessory)
c. Component RCA (the cable is an extra accessory)
c. Composite via SCART
d. Composite Video
e. S-Video (the cable is an extra accessory)
KiSS DP-600
Displays
Connecting your KiSS DP-600 DVD & Media Player to your amplifier can be done using any of the cables below.
(Only one cable can be connected at a time)
Audio connection
a. Analog Digital Output, 2 Channels or 5.1 Channels
b. S/PDIF Coaxial Digital Audio Output
(the cable is an extra accessory)
c. S/PDIF Optical/Toslink Digital Audio Output
(the cable is an extra accessory)
KiSS DP-600 Amplifier
a b c
a b c d e
