SETTING UP
English

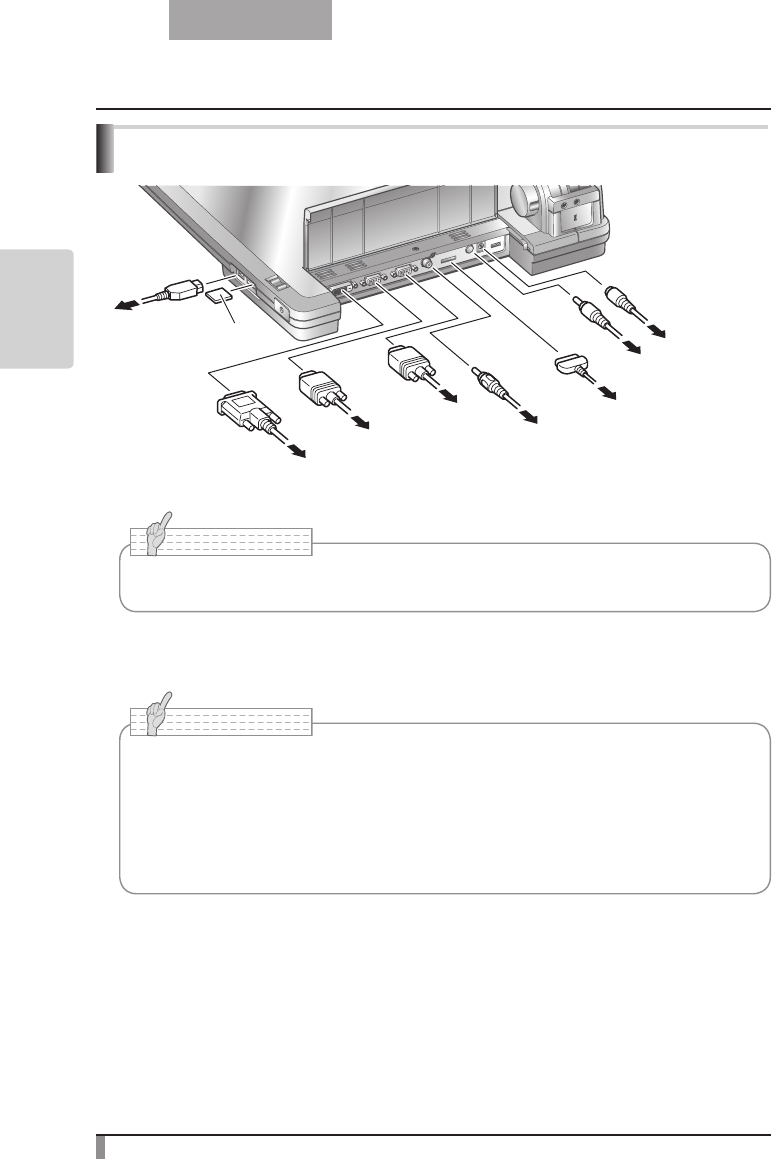

Connecting the AC Adapter and Video Cable
(2) DVI OUT terminal
· To projector
· To PC monitor
(3) RGB OUT terminal
· To projector
· To PC monitor
(7) DC IN 12V terminal
· To power plug
(8) DC OUT terminal
· To optional
accessories
(6) RECORDER terminal
· To desktop recorder
(sold separately)
(5) VIDEO OUT terminal
· To monitor
(4) RGB IN terminal
· To PC
(1) USB terminal
· To PC
SD card
• To protect the unit and connected peripheral devices, turn off all devices.
When plugging in or unplugging the connector cable, hold the plug of the cable.
N o t e
(1) Connecting to the PC with a USB cable
Connect the USB cable to the [USB] terminal on the side panel.
We r
ecommend using a USB 2.0 compliant USB cable.
If
you plug into a USB connector with the power on, the PC may not recognize this
device.
• Depending on the USB environment used by the PC or peripheral equipment using the
USB 2.0 compliant cable, image transfer may be disrupted.
Operation is not guaranteed for all environments.
N o t e
(2) Connecting to the unit with a DVI input terminal equipped
Connect the supplied DVI cable to the [DVI OUT] terminal on the rear panel.
