PART NAMES
AND
FUNCTIONS
English
List of Functions

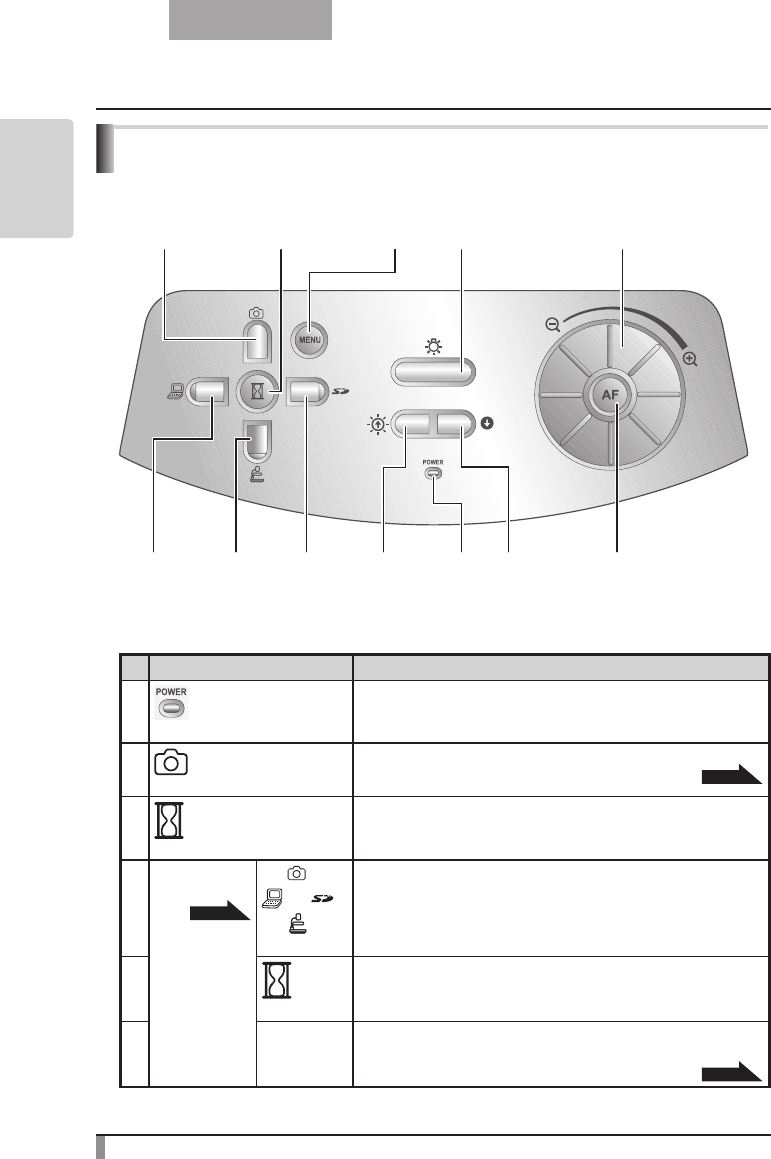

Front operating panel
(1)(3) (2)(4)(15) (5) (6) (7)
(3)(8) (3)(9) (3)(10) (11)(13) (12)(14) (16)(∗)
* From here on, menu items displayed/selected on the monitor or the projection screen are
referred to as “OSD (On-Screen Display).”
Name Function
(
*
)
(POWER LED)
Flashes blue when the power is turned on.
Power ON: Lit blue
Standby status (remote control OFF): Lit red
(1)
(Image save)
To save the image on the SD card.
P.105
(2)
(Pause)
To pause the camera image. Press this button again to
restart.
(3) OSD
operations
P.86
(Direction)
To select an OSD menu item.
(4)
(Decision)
To decide the OSD item.
(5) MENU To show/hide the OSD menu.
The LEDs for operation buttons are not lit during OSD
menu display.
P.86
