MM-012099-001, Rev. B
42

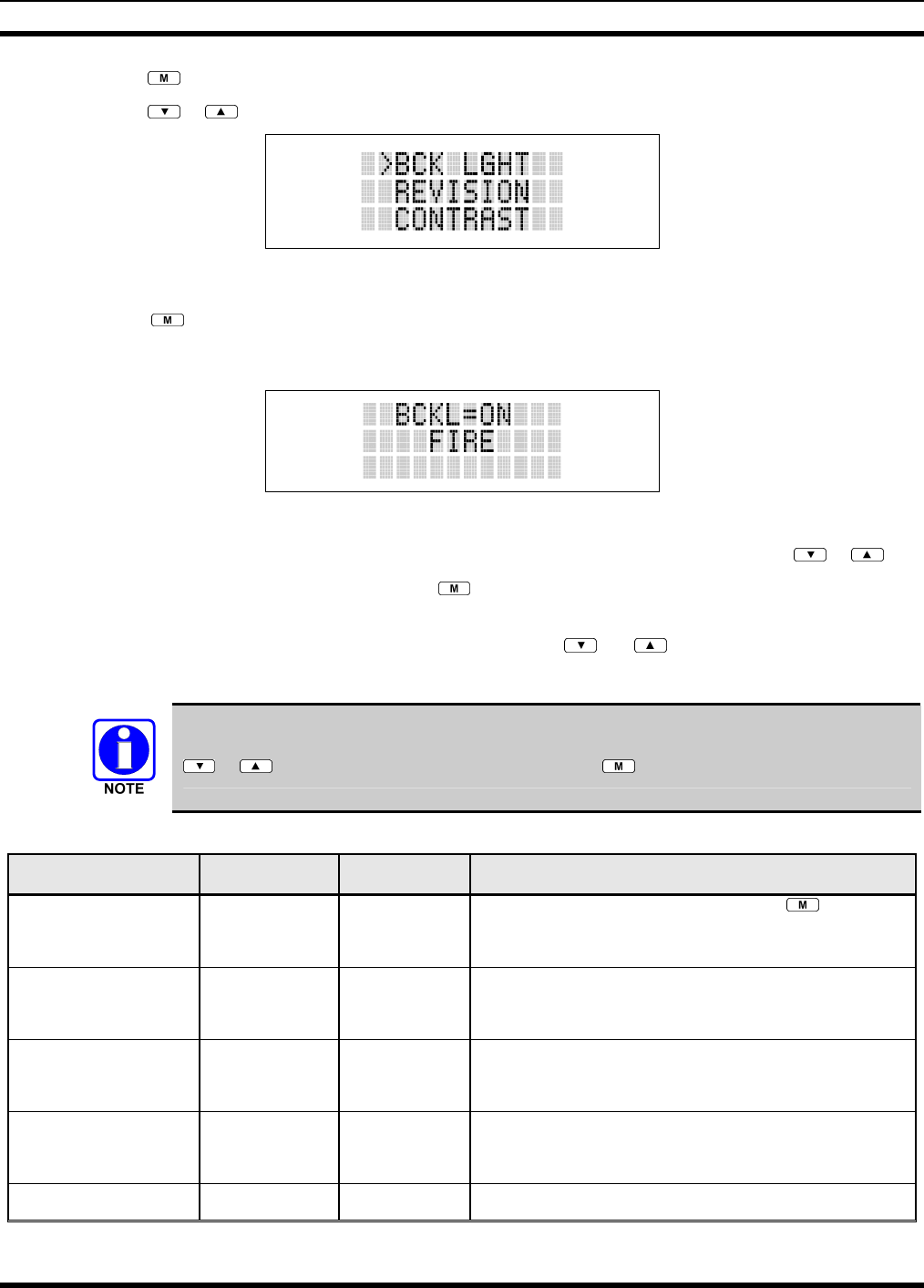

1. Press . The menu mode is entered.
2. Press
or until the display shows:
Figure 8-7: Backlight Menu Item Selection Parameter
3. Press
. The backlight menu item is activated. Line one shows the active menu item and its
current parameter setting. Line two shows the currently selected system or group name (see Figure
8-8).
Figure 8-8: Backlight Menu Display
4. The menu item's parameter setting shown in the display can now be changed by using
or .
5. Once the desired setting is reached press
to store the value and return the menu option selection
level.
For menu items that display radio information pressing
or will scroll through a list of
informational displays. An example of information displays is shown in Table 8-5.
The TX POWER menu item, when selected, toggles LOW/HIGH power. It does not use
or to scroll nor is an additional press of the button required.
Table 8-5: Menu Item Information
FEATURE DISPLAY
PARAMETER
SETTING
COMMENT
Keypad Lock Menu Item:
KEY LOCK
Once Selected:
LOCKED
Locked
Unlocked
Locks the keypad. To unlock; press and release
then within
1 second press the option button NOTE: This sequence is also a
short cut to locking the keypad.
Backlight Adjust Menu Item:
BCK LIGHT
Once Selected:
BCKL=
OFF/ON Selects the light level for backlighting.
Contrast Adjust Menu Item:
CONTRAST
Once Selected:
CNTRST=
1, 2, 3, 4 Selects the display contrast level.
Transmit Power Select Menu Item:
TX POWER
Once Selected:
POWER=
HIGH or LOW Selects radio output power mode.
Radio Revision Information Menu Item:
REVISION
N/A Selects the information display to view. Informational display only
(see Table 8-6). No user selectable settings.
