8
TASCAM DR-701D

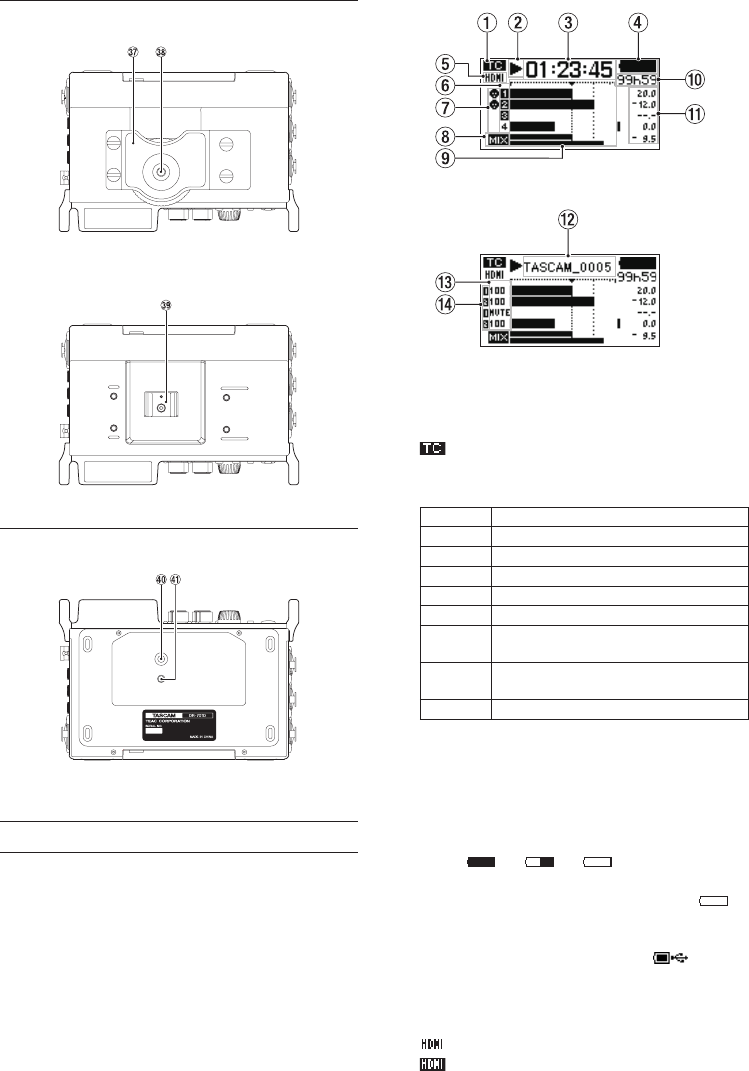

Top
m DSLR camera attachment bracket
, DSLR camera mounting screw (1/4-inch)
. Accessory shoe
Bottom
/ Tripod mounting threads (1/4-inch)
! Video camera pin hole
Home Screen
This unit's Home Screen has a counter display mode
and a trim display mode.
When the unit's Home Screen is open, turn the DATA
dial to change the display contents.
Home Screen counter display mode
Home Screen trim display mode
1 Timecode reception status
This shows the timecode reception status.
Nothing shown: no timecode being received
: timecode being received
2 Recorder operation status
This icon shows the recorder operation status.
Indicator Meaning
8
Stopped
9
Paused
7
Playing back
,
Searching forward
m
Searching backward
/
Skipping to the beginning of the
next file
.
Skipping to the beginning of the
previous file
0
Recording
3 Elapsed time
This shows the elapsed time (hours: minutes:
seconds) of the current file.
4 Power supply status
When a battery is being used, a battery icon
shows the amount of power remaining with 25
levels ( w w ).
The battery is almost dead and the power will
soon turn off (enter standby) if the empty
icon appears and blinks.
When using the TASCAM PS-P515U AC adapter
(sold separately) or USB bus power, appears.
5 HDMI connection status
This shows the HDMI connection status.
No icon: no HDMI connection
: HDMI connection
: HDMI connection (clock synchronization)
