TASCAM DR-701D
7

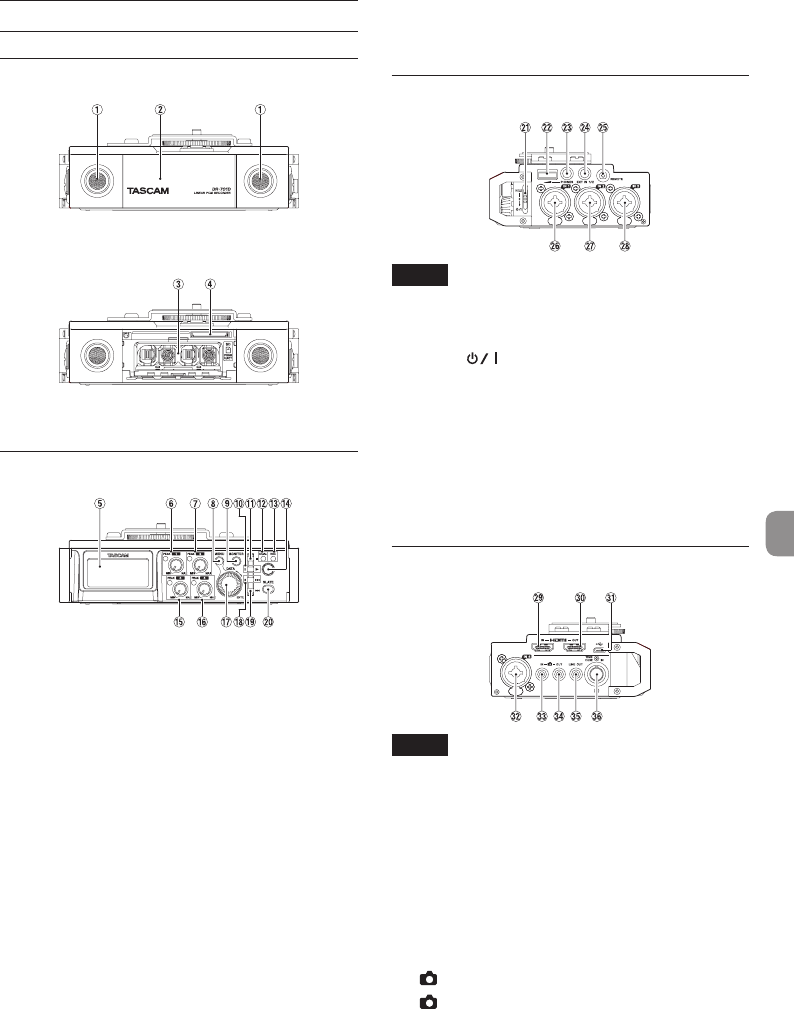

Names and functions of parts
Front
1 Built-in stereo microphone
2 Front cover
3 Battery compartment
4 SD card slot
Rear panel
5 Display
6 1 knob and PEAK indicator
7 2 knob and PEAK indicator
8 MENU button
9 MONITOR button
0 2/7 button
q 1/8 button
w DUAL indicator
This lights when dual recording mode is selected.
e REC indicator
This lights red when recording.
r Record (0) button
t 3 knob and PEAK indicator
y 4 knob and PEAK indicator
u DATA dial (ENTER)
Turn to select items and change values on setting
screens.
i 3// button
o 4/. button
p SLATE button
Use to generate slate tones.
Left side
NOTE
When connecting and using plugs from external
devices, do not apply excessive force to the
plugs. Doing so could damage the equipment.
a HOLD/ switch
s PHONES volume
d PHONES jack (3.5mm stereo mini jack)
f EXT IN 1/2 connector (3.5mm stereo mini jack)
g REMOTE connector (2.5mm TRS jack)
h IN 1 connector (XLR/TRS)
j IN 2 connector (XLR/TRS)
k IN 3 connector (XLR/TRS)
Right side
NOTE
When connecting and using plugs from
headphones and other external devices, do not
apply excessive force to the plugs. In particular,
be careful not to apply too much force when
using a standard to mini plug adapter. Doing so
could damage the equipment.
l HDMI IN connector
; HDMI OUT connector
z Micro USB connector
x IN 4 connector (XLR/TRS)
c IN connector (3.5mm stereo mini jack)
v OUT connector (3.5mm stereo mini jack)
b LINE OUT jack (3.5mm stereo mini jack)
n TIME CODE IN connector
