Matrox G450 MMS – User Guide 39

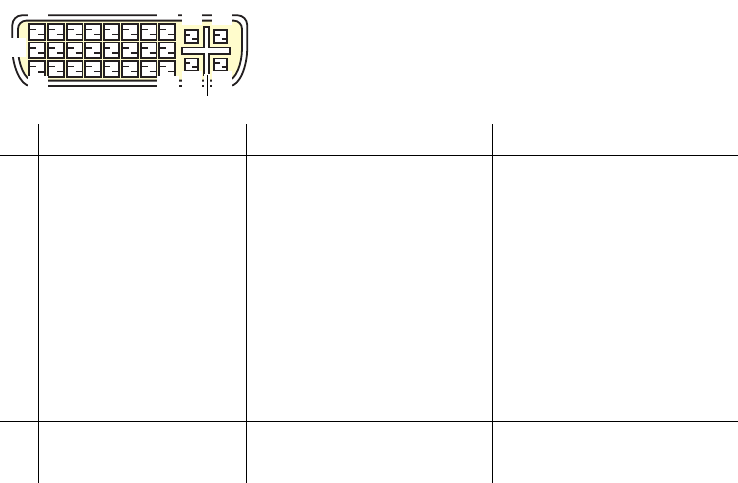

Pin usage with an analog dual-monitor adapter (DVI-I to HD-15)
Pin Signal Pin Signal Pin Signal
1 TMDS data 2– 9 TMDS data 1– 17 TMDS data 0–
2 TMDS data 2+ 10 TMDS data 1+ 18 TMDS data 0+
3 TMDS data 2/4 shield 11 TMDS data 1/3 shield 19 TMDS data 0/5 shield
4 Analog red (2) 12 TMDS data 3– 20 Analog blue (2)
5 Analog horizontal sync (2) 13 TMDS data 3+ 21 DDC Clock (2)
6 DDC clock (1) 14+5 V power 22TMDS clock shield
7 DDC data (1) 15
Ground (for +5 V, Hsync, &
VSync)
23 TMDS clock+
8 Analog vertical sync (1) 16 Hot plug detection 24 TMDS clock–
C1 Analog red (1) C3 Analog blue (1)
C5
Analog ground
(Analog R, G, & B return) (1)
C2 Analog green (1) C4 Analog horizontal sync (1)
24
17
9
1
8
C3
C1 C2
C4
C5
