8–2
SCANTEAM 3400PDF User’s Guide
Replacing the Interface Cable
The standardinterface cable isattached to thescanner with an8-pin modular
connector. When properly seated,the connector is heldin the scanner handle
by a flexible retention tab. The cable's designed to be field replaceable.
Notes:
• Order replacement cables from Welch Allyn or from an authorized
distributor.
• When orderinga replacement cable,specify thecable part numberof the
original interface cable.
➊ Turn the power to the host system OFF.
To Replace the Interface Cable:
➋ Disconnect the scanner cable from the terminal or computer.

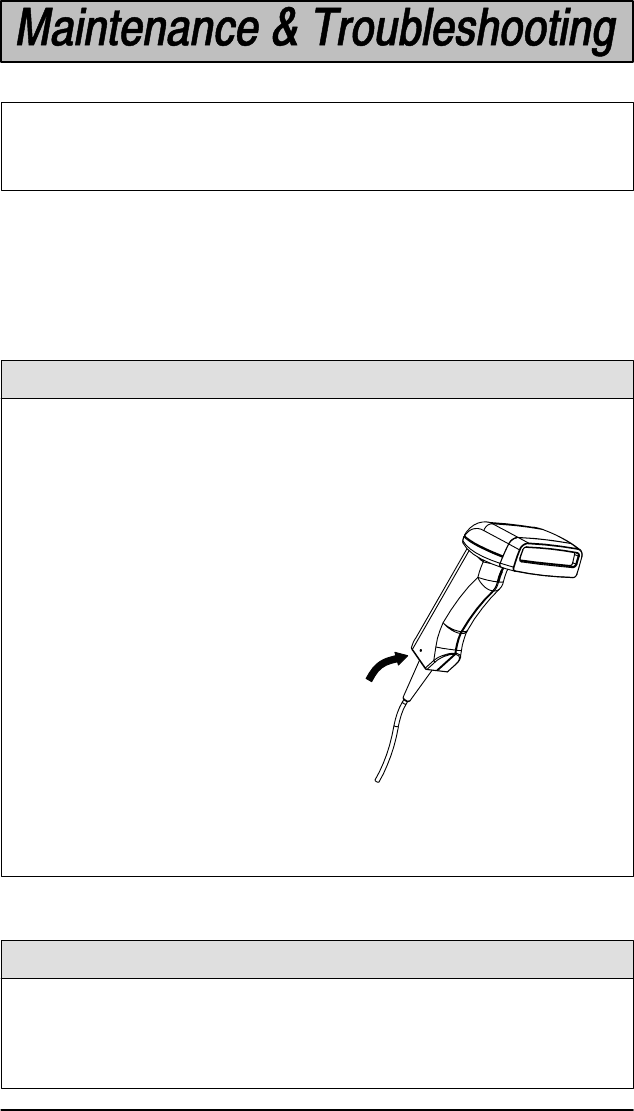

➌ Locate the small hole on the side of the scanner handle near the
base (see Figure below).
➍ Straighten one end of a paper clip.
➎ Insert the end of the paper
clip into the small hole and
press in. This depresses
the retentiontab, releasing
the connector. Pull the
connector out of the
scanner handle while
maintaining pressure on
the paper clip.
➏ Replace with the new cable.
Insert the connector into the opening at the base of the scanner
handle. Press firmly. The connector is keyed" to go in only one
way, and will click into place.
Cable
Release
To Reset Factory Settings
If you aren't sure what programming options have been set up in your
scanner, or you've changed some options and now want the factory
settings restored, refer to Main Menu Selections in Section 1 and scan
the Factory Default Settings bar code.
