SCANTEAM 3400PDF User’s Guide
You are usingan IBM PC ATand are scanning a UPCA bar code with afive digit
addenda (shown below). The bar code has a total of 18 characters, including
the number system, the check digits, and a space between the main bar code
data and the addenda bar code data.
Data Formatter Example
H Scan the Enter Data Format bar code (page 2-17).
H Scan the 03 bar codes for PC AT Terminal Type.
For yourapplication, you don't wantthe space between the mainbar code data
and the addenda bar code data transmitted. You also want the bar code data
followed by a carriage return (CR).

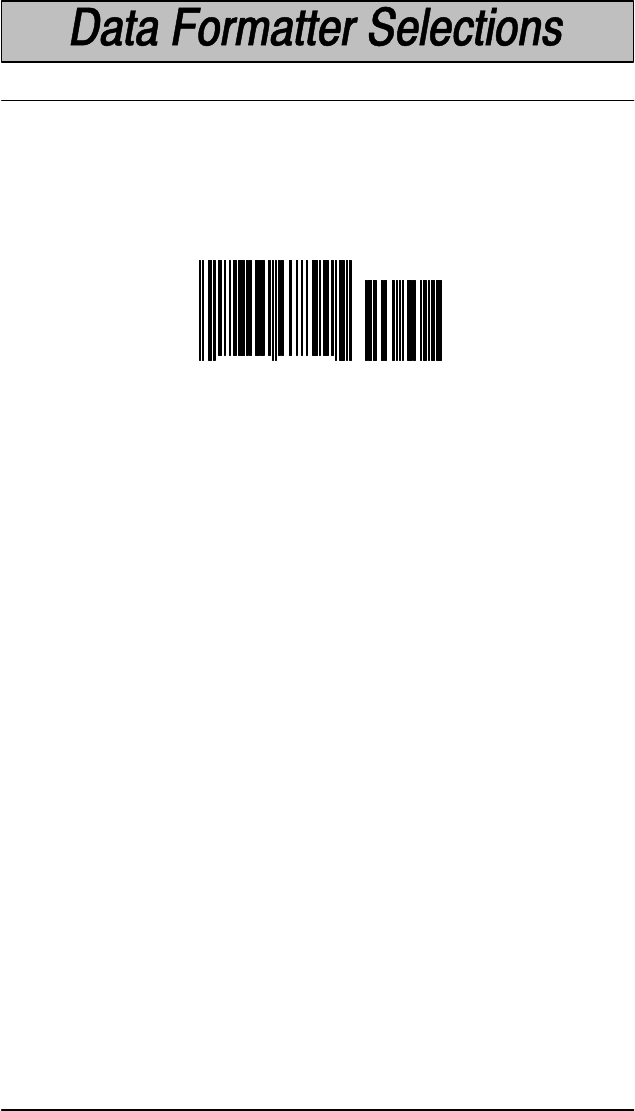

UPC A with 5 digit addenda
56098
0 12345 67890 5
Refer to the Format Editor Commands Chart on page 2-18 to format the
following example. The programming bar codes on pages 2-17, and the
alphaĆnumericbar codeson theinside backcover areusedto programthe data
formatter.
H Scan the 63 bar codes, the Hex value for UPC symbology.
H Scan the 18 bar codes for the bar code length.
H Scan the FB (suppress characters command) bar codes, scan 20 (the Hex
value for a space), and then scan FB to frame (complete) the command.
H Scan the FF bar codes to end Format Editor selection.
The following are the Editor Command Sequences:
H Scan the F7 bar codes to move the cursor back to the beginning of the bar
code data.
H Scan the F1 and 0D bar codes to send all the characters followed by a
carriage return (CR= 0D in Hex value).
