SCANTEAM 3400PDF User’s Guide
7 Data, 2 Stop
8 Data, 1 Stop
7 Data, 1 Stop
This selection allows you to set the RSĆ232 word length at seven or eight bits
of data per character. The number of start and stop bits is fixed at one each. If
an application requires only ASCII Hex characters 0 through 7F decimal (text,
digits, andpunctuation), select 7data bits. For applicationsrequiring use ofthe
full ASCII set, select 8 data bits per character.

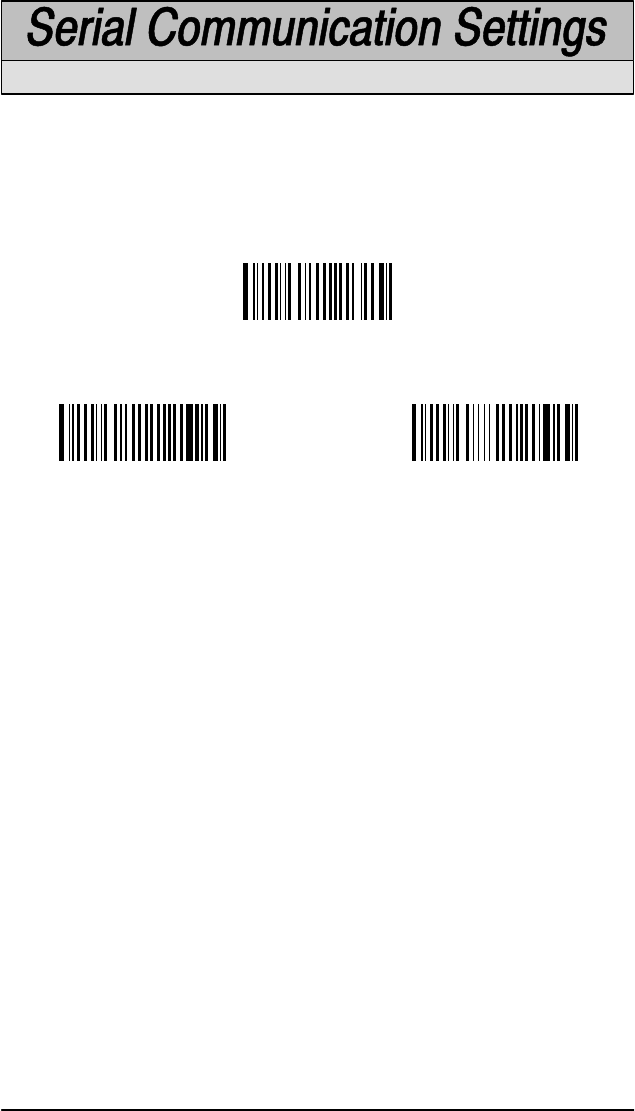

RS-232 Word Length Selection
