MSD 7R SHEARS
Page 10 Section 5 Maintenance
SHEAR LUBRICATION
Grease all points every 8 hours of shear operation. See fi gure 5-1. Use premium grease No. 2EP or equiva-
lent. Grease fi tting locations are indicated by GREASE decals on the shear.
LOCATION ON SHEAR NUMBER OF SHOTS
1 One in cylinder rod end 6
2 One in cylinder butt end 6
3 One in main pivot shaft 6
4 Turntable bearing (refer to rotator section)
2
1
3
4

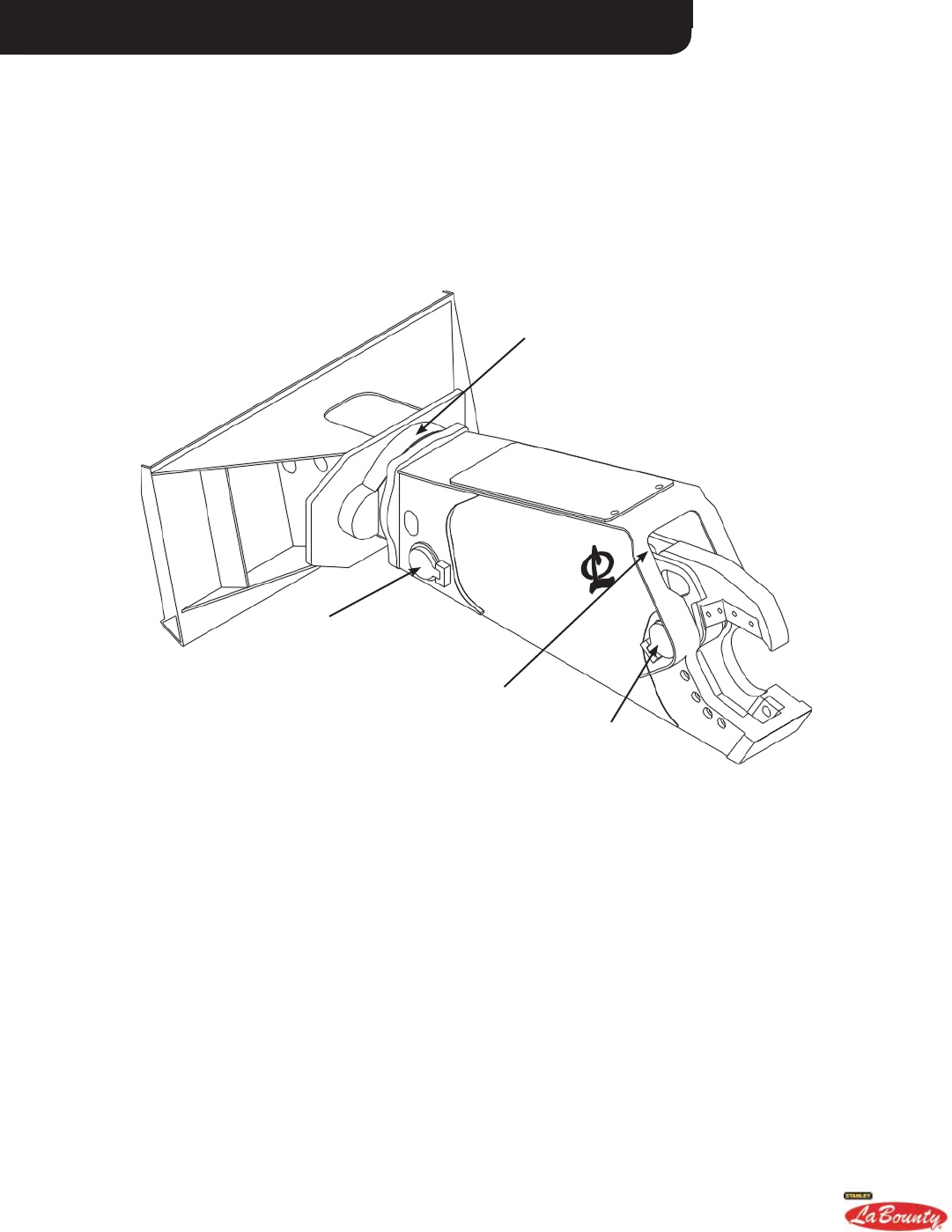

FIGURE 5-1
