MM23772, Rev. F
90
10.3 DISPLAY
The radio Display is made up of 3 lines (see Figure 10-4) that contain 12 character blocks. Lines 1 and 2
are used primarily to display system and group names. Line 1 also displays radio status messages. The 3rd
line is used primarily to display radio status icons. All three lines are used to display menu options when
in the menu mode. If programmed, the display backlighting will illuminate upon power up or when radio
controls are operated.

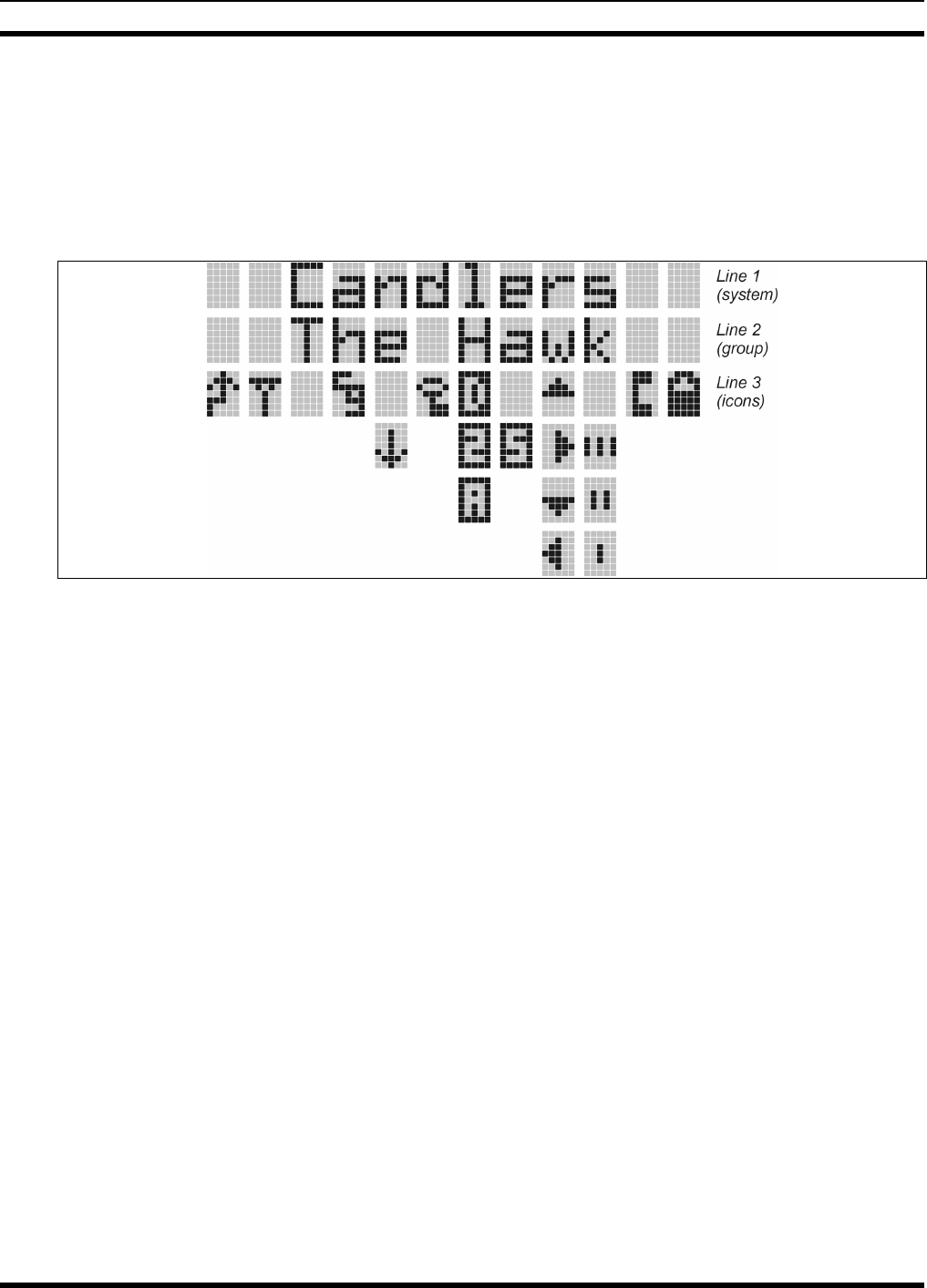

Figure 10-4: Radio Display
