MM101332V1, Rev. K
15 IMMERSIBLE P7100
IP
PREVENTIVE MAINTENANCE
Those P7100
IP
radios labeled “immersible” (see Figure 15-1) require periodic testing using specialized
equipment to verify the radio’s watertight integrity.
Preventive Maintenance for Immersion-Rated Radios
P7100
IP
model radios with Immersion Option HTMR must be serviced by a service
center authorized and certified by M/A-COM to perform the necessary tests to verify
CAUTION
watertight integrity. As part of a thorough preventive maintenance plan, M/A-COM
recommends Immersion-Rated P7100
IP
portable radios be, at a minimum, tested and
re-certified on an annual basis. M/A-COM further recommends that the radios be
tested on or close to the anniversary of the ship date printed on the Model Number
label on the back of the radio (see Figure 15-1).

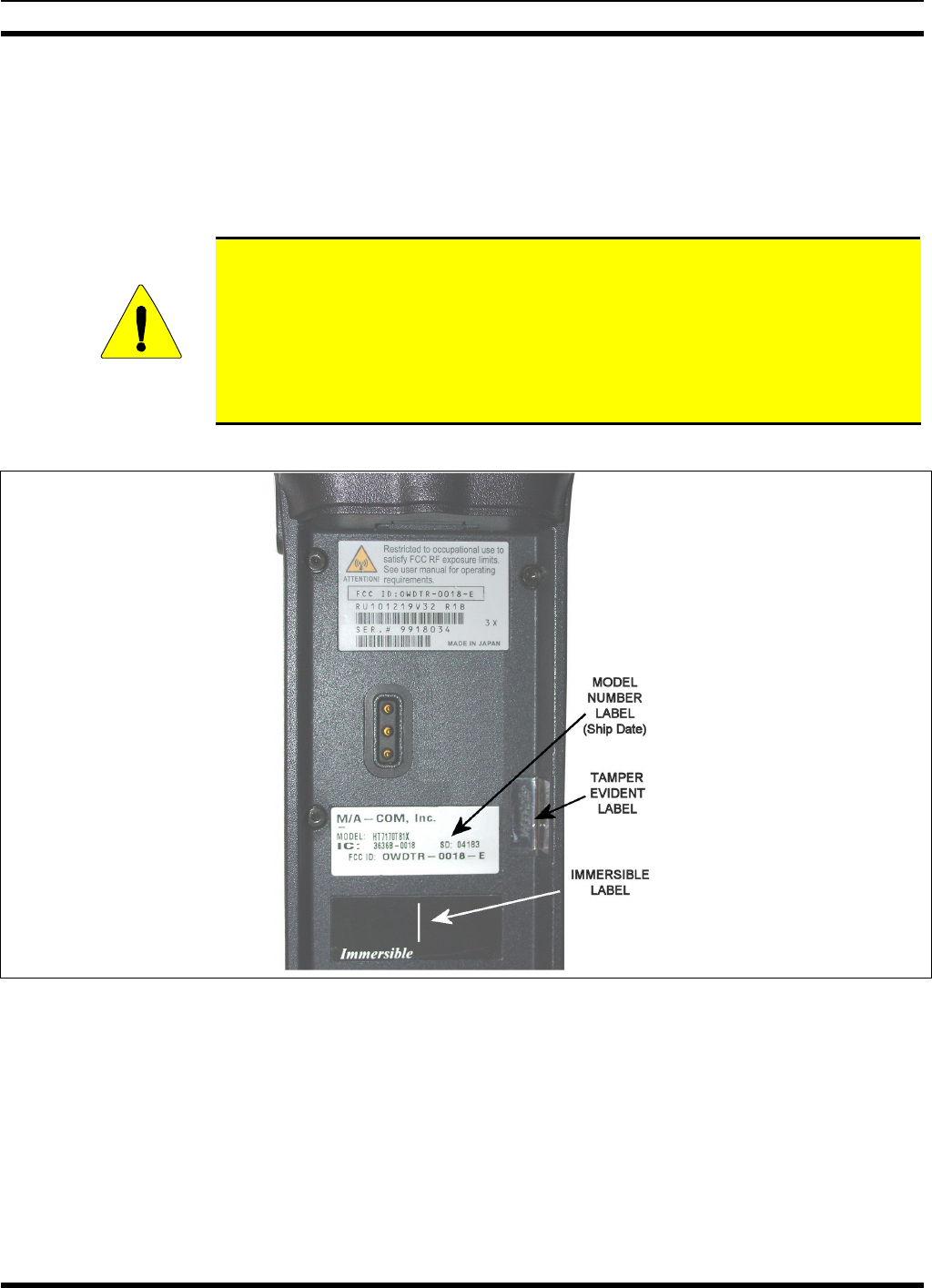

Figure 15-1: Labels
59
