Manual Tuning - DAB
Manual tuning allows you to tune directly to the various DAB Band III
channels. UK DAB stations are located in the range 11B to 12D.

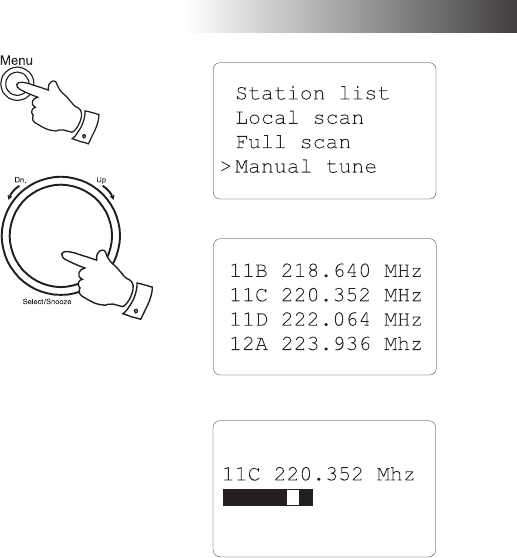

1. When in DAB mode press
Menu button until the display shows the
DAB menu list.
2. Rotate the Tuning/Select
control until "Manual tune" is selected.
3. Press and release the Tuning/Select button to enter manual tune
mode.
4. Rotate the Tuning/Select control to select the required DAB
channel. The clear unfilled rectangle indicates the minimum signal
level required for satisfactory reception. The signal strength bar will
go up and down showing the changing signal strength as you adjust
the telescopic aerial on your radio.
5. When a DAB signal is found, the display will show the name of the
DAB multiplex and a bar graph to indicate the signal strength. Any
new radio stations found will be added to the list stored in the radio.
6. Press the Menu button to access the main DAB menu then select
'Station list' to return to normal tuning.
2-6
1
44
DAB Radio .
WM-202 iss 1.indd 45 20/02/2008 13:03:59
