The IT3800 uses a USB converter to simulate a USB keyboard. Data flows into
applications as if entered from the keyboard. The USB converter is compatible
with Apple I–MAC Series and WindowsR 98 and later PCs. Use cable set
42206062–01 to make the USB port connection.
To set up the USB communications, find the terminal ID in the Supported
Terminal Chart and follow the instructions on page 2–2. The PC and scanner
automatically connect. Communications start immediately.
Serial Wedge
The IT3800 uses TTL signal levels to wedge into an RS-232 serial network.
Use IT3800 serial wedge cables only to prevent damage to the scanner. Refer
to the serial interface programming (pages 2–9 to 2–12) to set the baud rate
and communications protocol.
To set up the serial wedge terminal ID, find the terminal ID in the Supported
Terminal Chart and follow the instructions on page 2–2. Set the port to which
you want the scanned data to transmit. Port 1 corresponds to P1 on the output
cable and Port 2 corresponds to P2 on the output cable. Choosing Both sends
scanned data to P1 and P2. Default = P1.

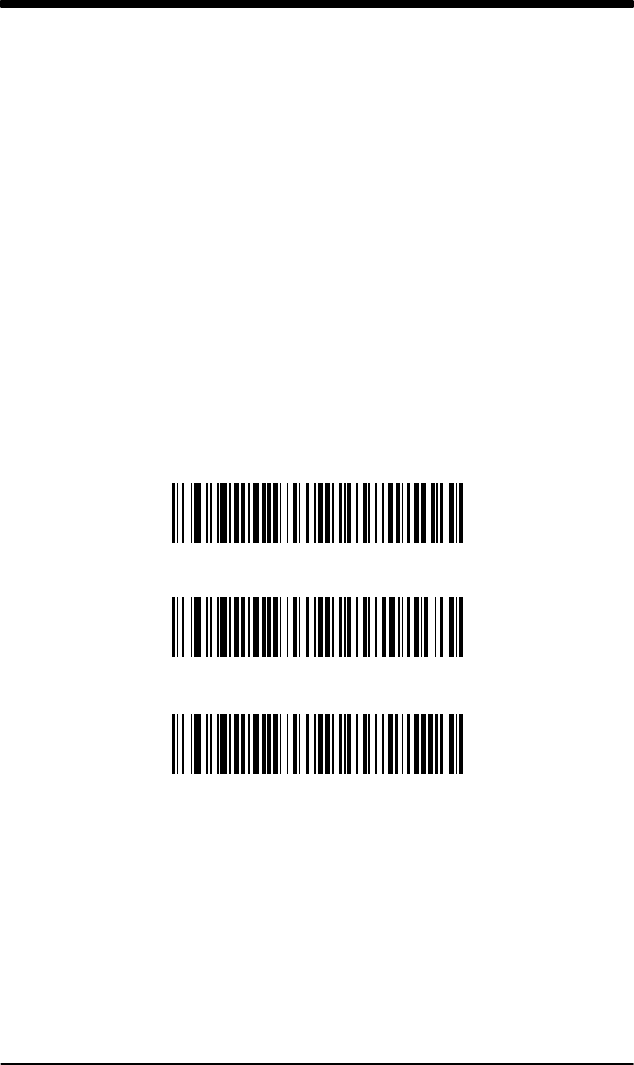

* P1
P2
Both P1 and P2
