IMAGETEAM 3800 Users Guide
Standard Cable Pinouts (Primary Interface Cables)
3800LR-12
Decoded output data format provided at 10 pin RJ41 modular connector (in
scanner handle). See chart below.

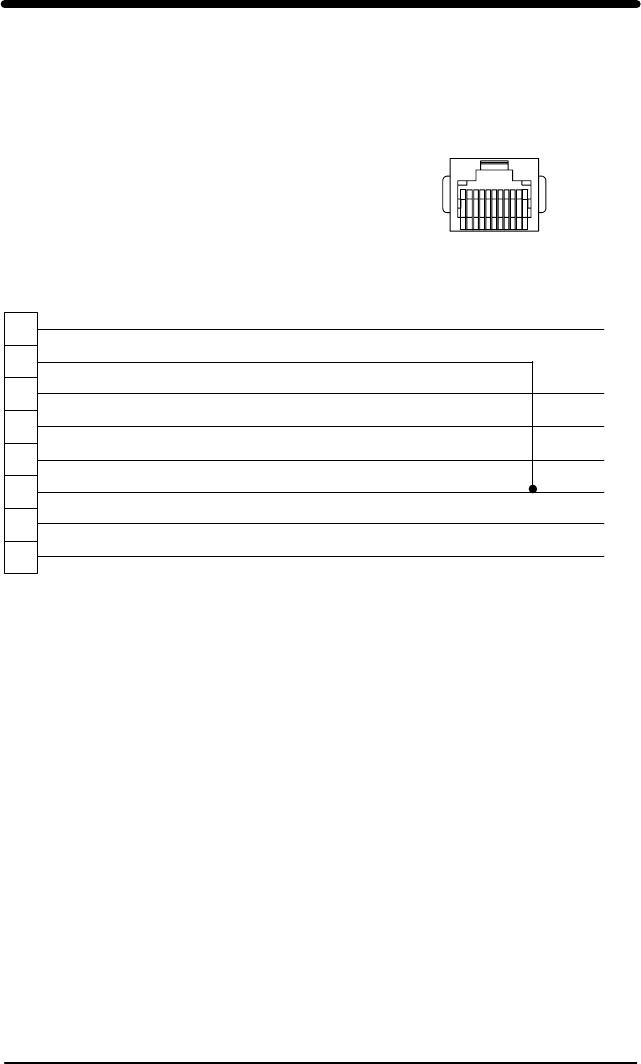

Signal Function
9
7
8
4
3
5
6
2
+5VDC
RTS
Ground
Prog
RXD
TXD
Braid
Clear to Send Data
5 Volt Power Connection
Request to Send Data
Supply Ground
Tied to 5 Volt Power
Receive Data Serial Data to Scanner
Transmit Data Serial Data from Scanner
Cord Shield
CTS
P1
10 Pin RJ41 Modular Connector
