EVOi.net IN RECTANGULAR ROOMS
Longer / Wider Rectangular Room:

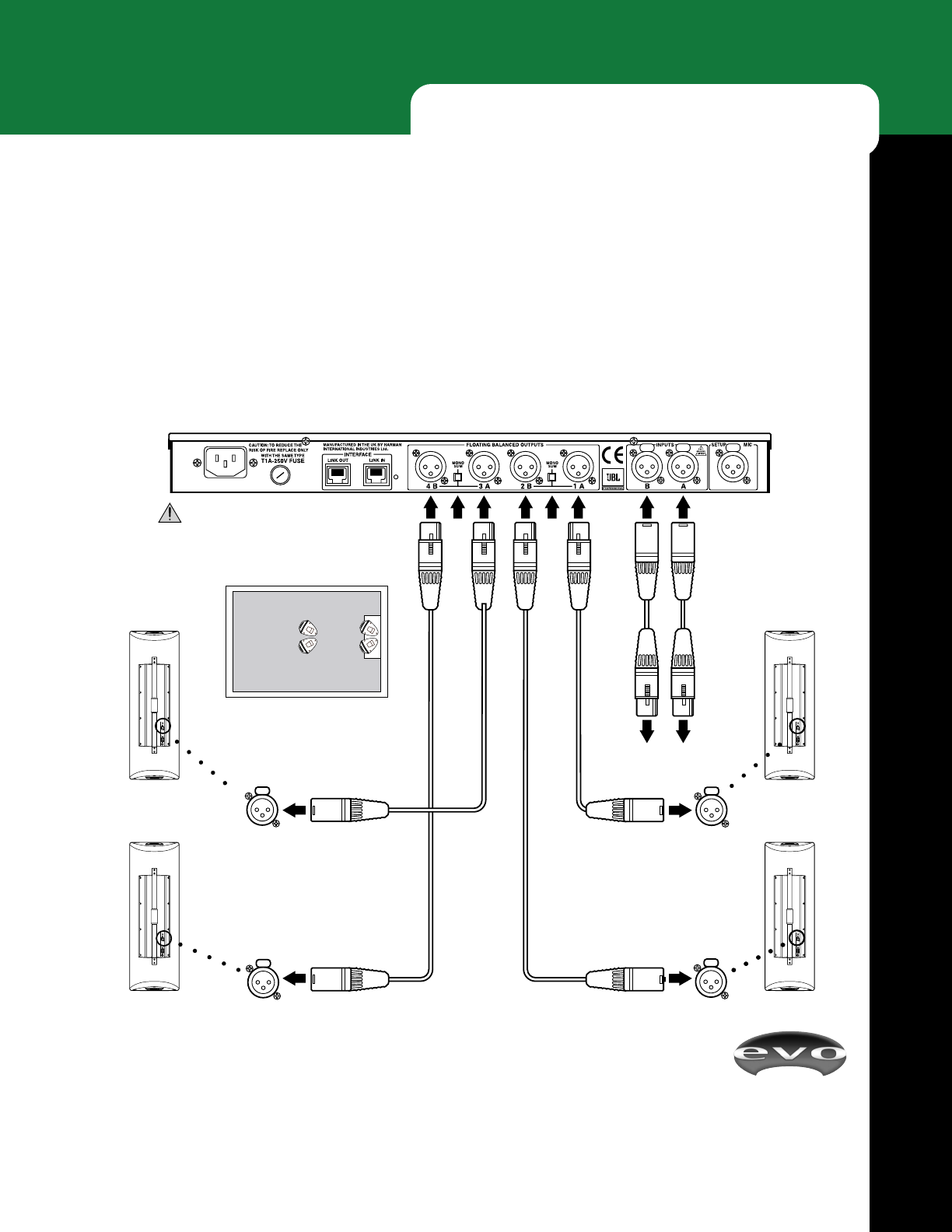

EVOi.net + 2 Main (Mono Array) EVOi.324s + 2 Delay (Mono Array) EVOi.324s
Another typical configuration for larger rooms is to configure two mono arrays, as illustrated in the inset diagram.
EVOi.net is hooked up as shown with both MONO SUM switches engaged.
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
Speaker Placement In Room
EVOi.324
Input
EVOi.324
Input
EVOi.324
Delay Mono 2
EVOi.324
Main Mono 2
XLR Signal Cables
XLR Signal Cables
EVOi.324
Input
EVOi.324
Input
EVOi.324
Delay Mono 1
EVOi.324
Main Mono 1
Audio Outputs
(from Mixer)
IMPORTANT: Make sure POWER is off
before making connections.
In
Mono
Mono
Mono Mono
In
Main Mono 1Delay Mono 1
Main Mono 2Delay Mono 2
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
2 = Auto EQ. Aux Out Setup 3&4
3 = Delay Setup
123
