©2007 ELAN Home Systems • All Rights Reserved 15
¸

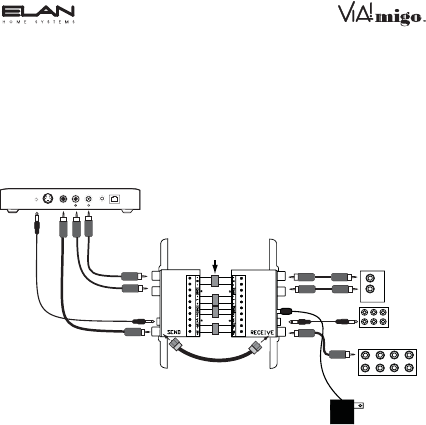

Figure 9 shows the VIA!migo connected directly to an ELAN Multi-Room
controller using an RSWP (Remote Source Wall Plate Kit) to pass Audio,
Video and IR between the VIA!migo and a Multi-Room Controller using
Cat-5.
Note: The RSWP is NOT system-specific and will work with any
Multi-Room Controller or Stereo-A/V receiver.
47*%&03&.05&*/ 7*%&0 "6%*0 7%$ %"5"*0
Source
Plate
System
Plate
+12VDC
Power
Supply
(included)
IN
R
L
RG-6 or
RG-59 Coax
Cat-5
Stereo
Interconnect
Cable (included)
Composite
Video Cable
(included)
Composite
Video Cable
(included)
Mono 3.5mm
Interconnect
Cable
3.5mm Mono
Interconnect
Cable
Composite Video
Inputs
(S12 or Z•880)
IR Outputs
(S12, S6, Z•630)
(S12/S6/Z•630)
Source Inputs
Stereo
Interconnect
Cable (included)
RSWP
VIA!migo
Figure 9: VIA!migo to ELAN Multi-Room Controller w/ RSWP
