Connecting VIA!migo to an ELAN Multi-Room
Controller
Remotely Located Source
VIA!migo connects to ELAN’s Multi-Room Controllers as a Source much like
a DVD player, VCR, or cable box. Figure 8 shows the VIA!migo hooked up
to an ELAN System12 using Cat-5 to connect an LSWP (Local Source Wall
Plate Kit to pass Audio, Video and IR between the VIA!migo and the S12
chassis using Cat-5.
Note: The LSWP is specific to S12 Systems and will not work with
other Multi-Room Controllers
+ R
GND - L + GND V+
V+ IR- IR
+
-
White/Green
Green
Brown
White/Brown
Orange
White/Orange
Blue
White/Blue
Cat-5
Blue
White/Blue
Orange
White/Orange
Green
White/Green
Brown
White/Brown
S12
ELAN
C45P
Composite
Video Cable
(included)
3.5mm Mono
Interconnect
Cable
Stereo
Interconnect
Cable
47*%&03&.05&*/ 7*%&0 "6%*0 7%$ %"5"*0
VIA!migo
F-to-RCA
Connector
(Female to Female)
RG-6 or RG-59
Coaxial Cable
F-to-RCA
Connector
(Female to Male)
S12
Video Inputs
LSWP
Local Source
Wall Plate

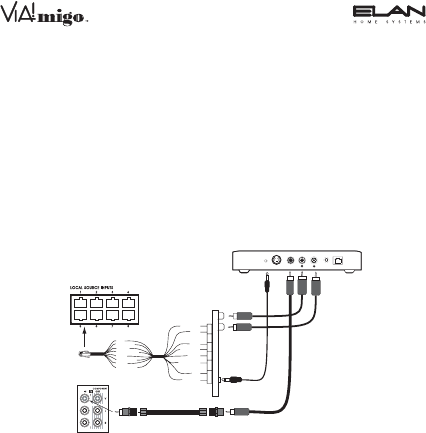

Figure 8: VIA!migo to ELAN S12 Multi-Room Controller w/ LSWP
