Control Connections
IR Control
The VIA!migo may be controlled by IR or RS-232. IR control is the simplest
connection and will provide all control options but WILL NOT provide feed-
back when used with Olé Touchpads. Feedback, in the case of IR controlled
applications, occurs on a TV or VIA! Touch Panel dispaly.
Use a mono 3.5mm interconnect cable between an IR Out port from an ELAN
Multi-Room Controller or other IR device and the Remote In port on the
VIA!migo as shown in Figure 5.
S-VIDEO REMOTE IN VIDEO AUDIO 10V DC DATA I/O
3.5mm Mono
Interconnect
Cable
VIA!migo
23
4
56
7
SOURCE IR OUTPUTS
81
IR Output

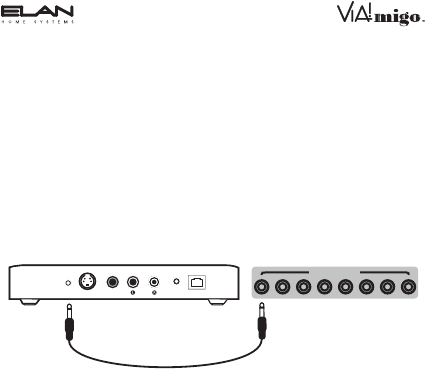

Figure 5: IR Connections
