Advanced Features and Troubleshooting Manual 1
Control Panel
Control Panel
The Xerox DocuPrint N4525 control panel:
Displays information about the status of the printer (or job in process).
Provides the means for changing printer settings and printer defaults to control how it
operates.

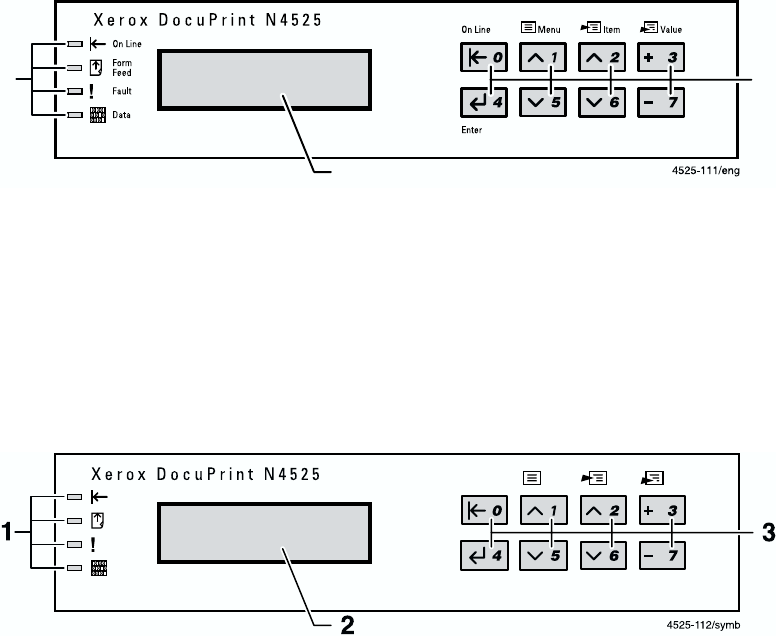

As shown in the following figure, your printer’s control panel will either have icons and
text, or icons only.
Control Panel with Icons and Text
1.
Four indicator lights
2.
A two-line display screen (16 characters per line)
3.
Eight control panel keys
Control Panel with Icons
1
2
3
