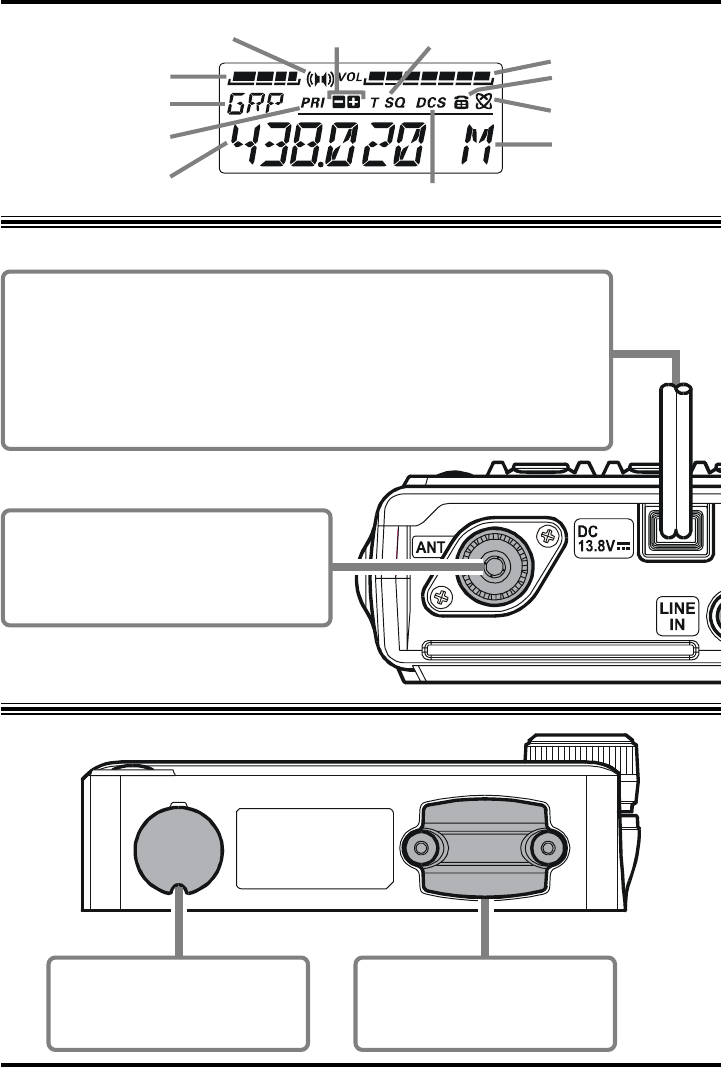

Connect this pigtail to the car battery directly with the supplied DC cable.
P Connect the red lead to the positive side (+) of the battery and connect the
black lead to the negative side (-) of the battery. The DC cable is as short as
possible, because transmitting requires a high DC electrical current flow.
P Performance may be significantly reduced when connecting the DC cable
to the cigarette lighter plug or fuse box.
P Install a line filter if your vehicle has objectionable alternator noises.
DC 13.8 V Cable Pigtail w/Fuse
Connect an efficient 144/430 MHz an-
tenna, which is adjusted to 50-Ohm im-
pedance. Use low-loss 50-Ohm coaxial
cable with type-M (PL259) connector.
ANT jack
You may connect an optional
CAB-1 Bluetooth
®
Head Set
Charger Sleeve here.
You may connect an optional
MEK-M10 Microphone Jack
here.
Digital Code Squelch (DCS) Operation
CTCSS OperationRepeater Shift Direction
S- & PO Meter
Internet Connection
Feature Active
Operating Frequency
Volume level
DTMF Feature Active
Memory Mode Selected
Operating band
Stereo Audio
Club Channel Monitor
Feature Active
