108 C1624M-F (9/07)

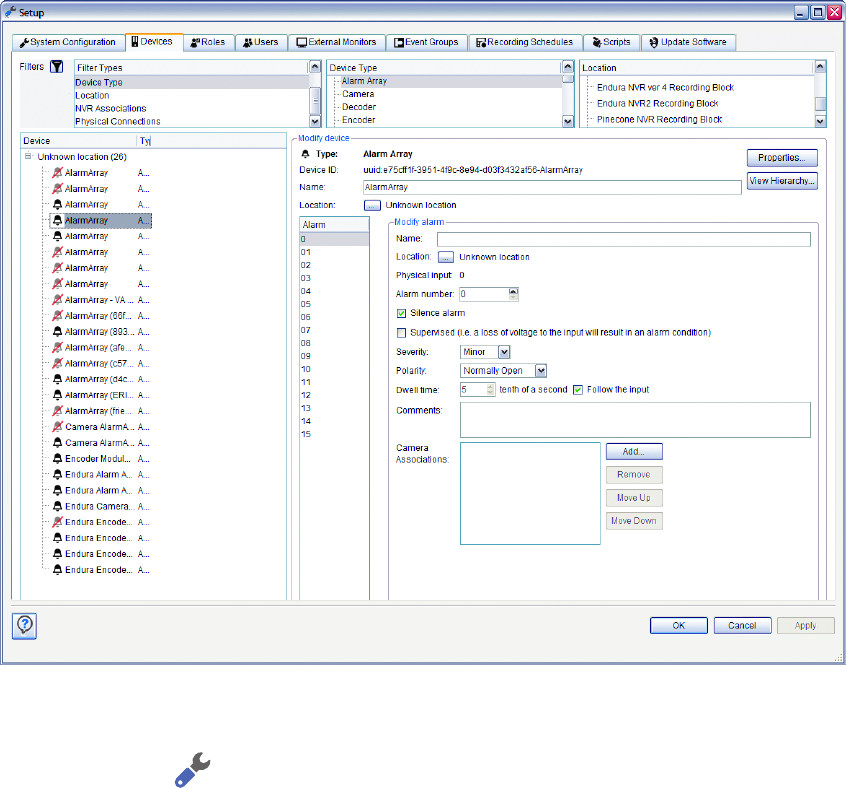

Figure 122. Alarm Array Configuration
To configure an alarm or alarm array:
1. Click the Setup button .
2. Click the Devices tab.
3. Click the alarm or alarm array you want to configure. The screen updates to display the current settings for that alarm or alarm array.
4. Assign a location to the alarm. Refer to Configuring Individual Devices on page 88.
5. Physical output is a read-only field that tells you the number of the alarm’s physical connection to the encoder.
6. For alarm arrays, you can also rename the individual alarms in the array. Select the alarm number, 0 - 47, and then enter a user-friendly
name for the alarm. Assigning a friendly name makes it easier to recognize individual devices on your network. The name must contain
fewer than 100 characters and may include only letters, numbers, or spaces. No special characters are allowed in these names.
7. Select the “Silence alarm” check box if you want to disable the alarm (default is unchecked/enabled).
8. Select the Supervised check box if you want a loss of voltage to the input to trigger an alarm condition (default is unchecked/unsupervised).
