Chapter 6 6-53
Removing and Replacing Parts
Removing and Replacing the Motherboard
Errors and Troubleshooting
Removing/Replacing Parts
10.Open the front door on the right side for more room. Disconnect the
magazine harness cable from the front of the motherboard by pushing
the ejection tabs on the connector outward (Figure 6-29).

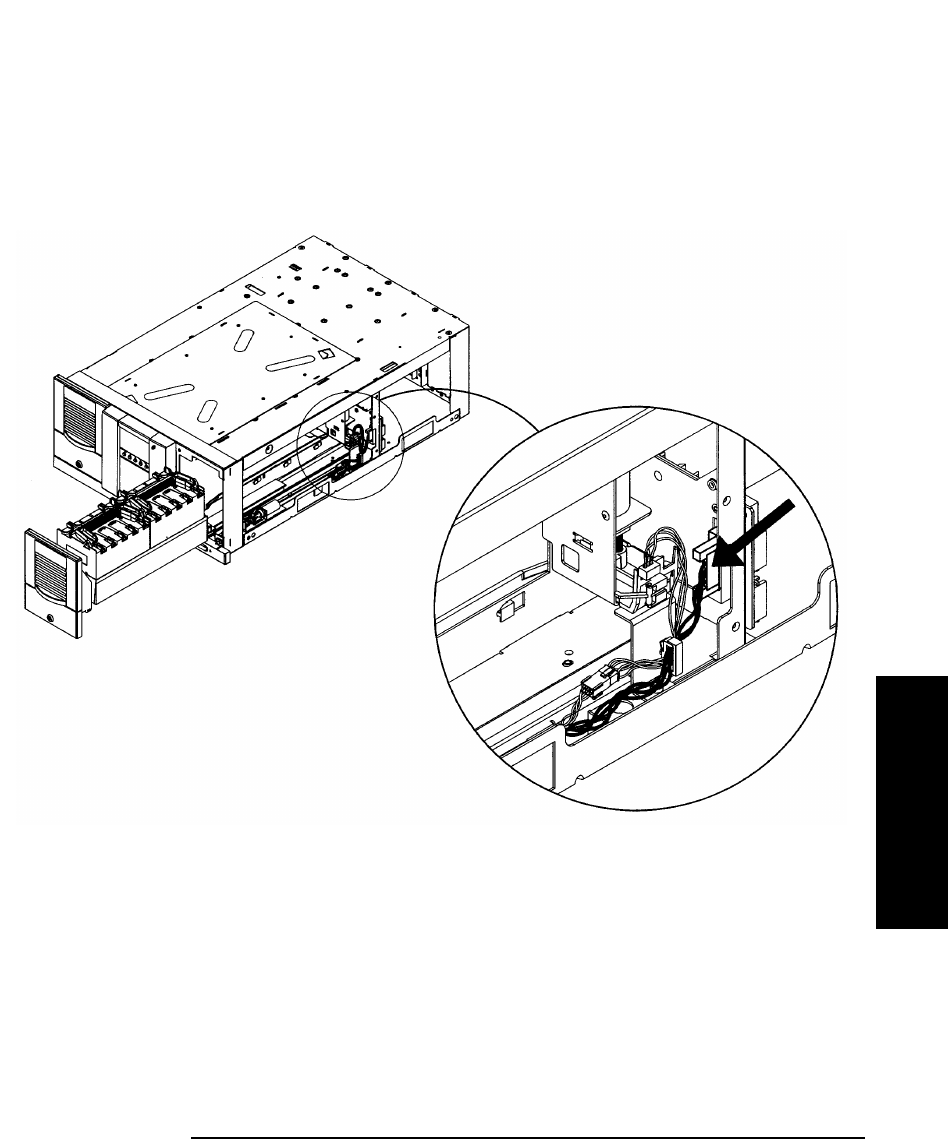

Figure 6-29 Magazine Lock Harness Cable Connection
