6-30 Chapter 6
Removing and Replacing Parts
Removing and Replacing the Transport Assembly (for Models 2/20, 4/
40, and 6/60 only)
4. Remove the 10-24 screws shown in Figure 6-12 to remove the front
forehead and cover on Models 4/40 and 6/60 and the 4-40 T10 screws
to remove the top cover on all models. You may have to slide the cover
forward to remove it from the rack.

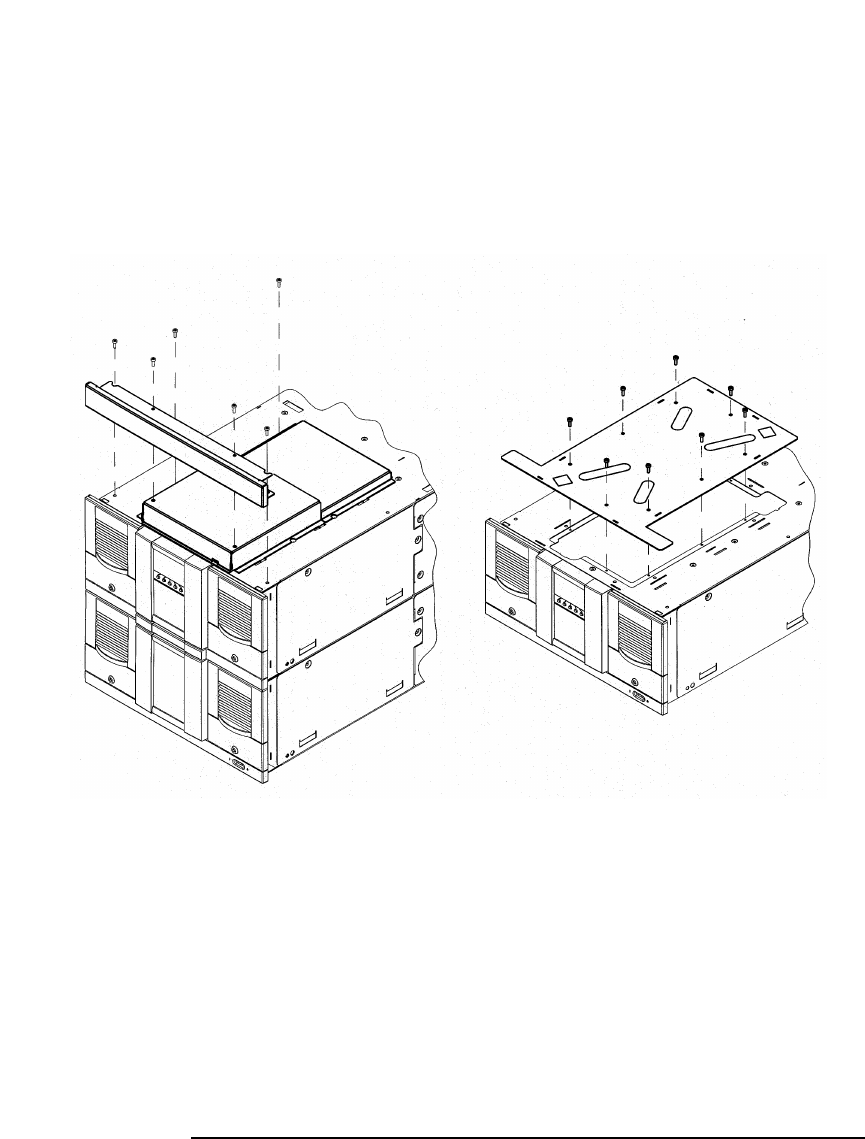

Figure 6-12 Access to the Transport Assembly
