• Be sure to remove the disc from the player and unplug the AC power cords from the outlets before connecting the system.
Connections
Setup
EN

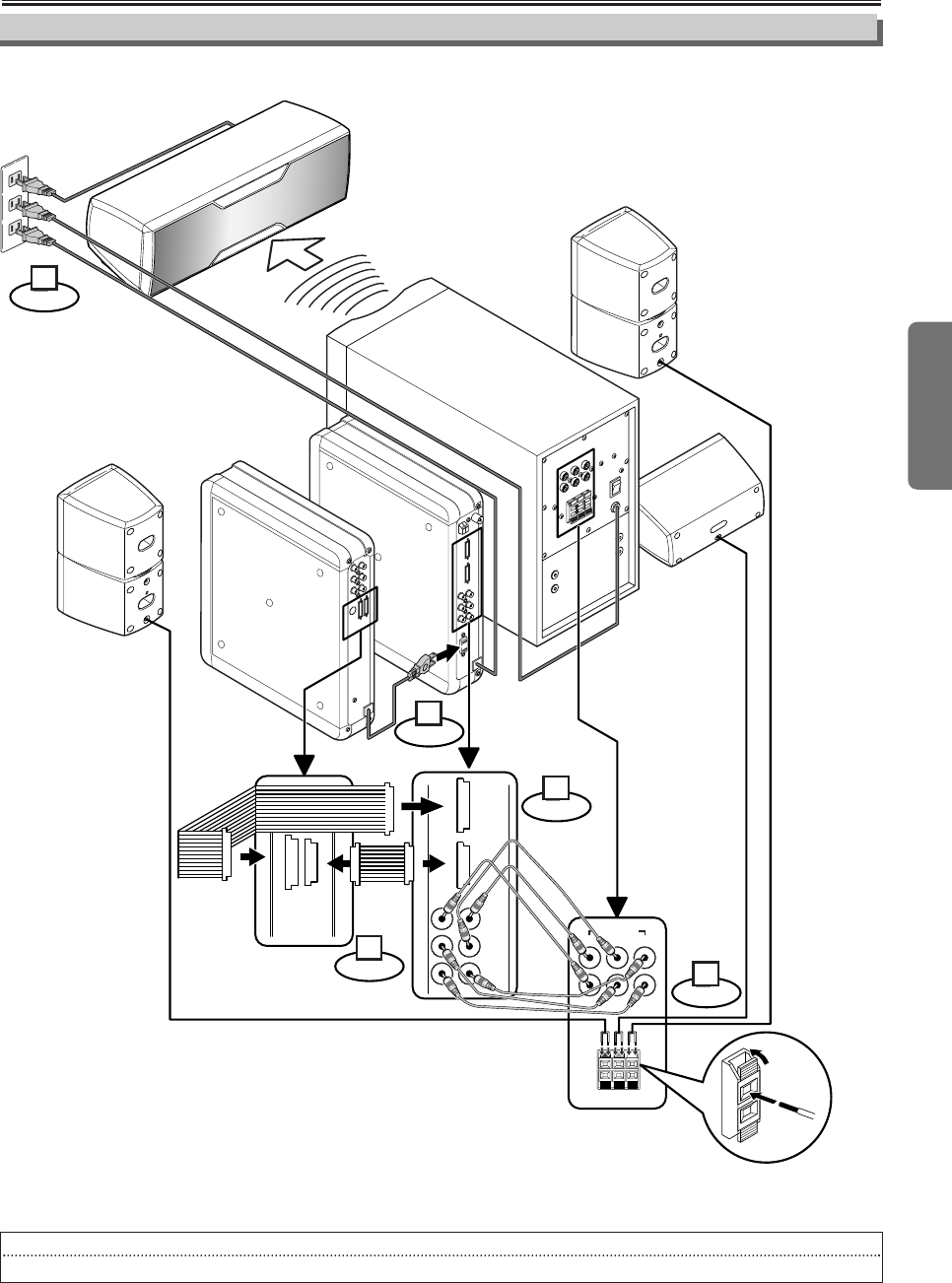

Connection to the AV Receiver and the Speaker Unit
–
9
–
FL
SL
CEN
FR
SR
FR CEN FL
SUB
SPEAKER OUTER
AUDIO INPUT
BUS 1 BUS 2
BUS 2
BUS 1
120V
SL
SR
FL
FR
CEN
SUB
Center Speaker
Front Speaker (left)
Aerial signal
Subwoofer
Wireless Rear Speaker
AC
DVD/CD
Player
AV Receiver
Bus cables
(Supplied)
Audio
Cables
(Supplied)
Front Speaker
(right)
Connect
1
Connect
2
Connect
3
Connect
4
Connect
5
When you finish all connections:
1) Turn on the switches of the Subwoofer (back of the unit) and the Wireless Rear speaker (back of the unit).
2) Press
[AMP POWER] to turn on the AV Receiver. The DVD/CD Player should turn on and off along with the
AV Receiver.
•
Match the colors of
the cables (wires) to
the colors on the
jacks.
See the illustration below and connect the DVD/CD Player, the AV Receiver and the Speaker Unit by following
the steps 1 to 5.
