Setup
If your TV is compatible with 525p (480p) progressive scanning and you want to
enjoy that high quality picture;
You must select the connection Method 2 above and progressive scanning mode. To set the mode,
press and hold [PLAY
BB
] on the front panel of the player for more than 5 seconds, so that
PROGRESSIVE indicator will light up.
If your TV is not compatible with progressive scanning;
Use this player in interlace mode. Make sure that PROGRESSIVE indicator is off. If not, press and hold
[PLAY B] on the front panel of the player for more than 5 seconds, so that PROGRESSIVE indicator
will light off.
After you have completed connections
Press the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input
channel (usually near channel 0) for viewing the picture from this player. If the picture does not appear, also refer to the
manual accompanying your TV.
INPUT MODES FOR COMMON TV BRANDS (Example)
Listed below are inputs for common brand name TV’s.
Admiral: AUX
Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93
GE: INPUT, TV/VCR, 00, 90, 91, 92, 93
Hitachi: INPUT, AUX
JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3
Kenwood: AUX
LXI-Series: 00
Magnavox: AUX CHANNEL
Panasonic: TV/VIDEO
RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
Samsung: TV/VIDEO
Sanyo: VIDEO
Sharp: 00
Sony: VIDEO1, VIDEO2, VIDEO3
Toshiba: TV/GAME
Zenith: 00
Connection to a TV
If your TV has AUDIO/VIDEO input jacks, see the following instructions.
Hint
Hint
Connect this player directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted
due to the copy protection system.
When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT jack.
(INPUT)
AUDIO
OUT
R
L
Y
C
R/PR
CB/PB
VIDEO
OUT
COMPONENT
VIDEO OUT
BUS 2
BUS 1
AUDIO
OUT
R
L
RL
AUDIO IN
VIDEO IN
VIDEO
OUT
AUDIO OUT
(Analog) VIDEO OUT
TV

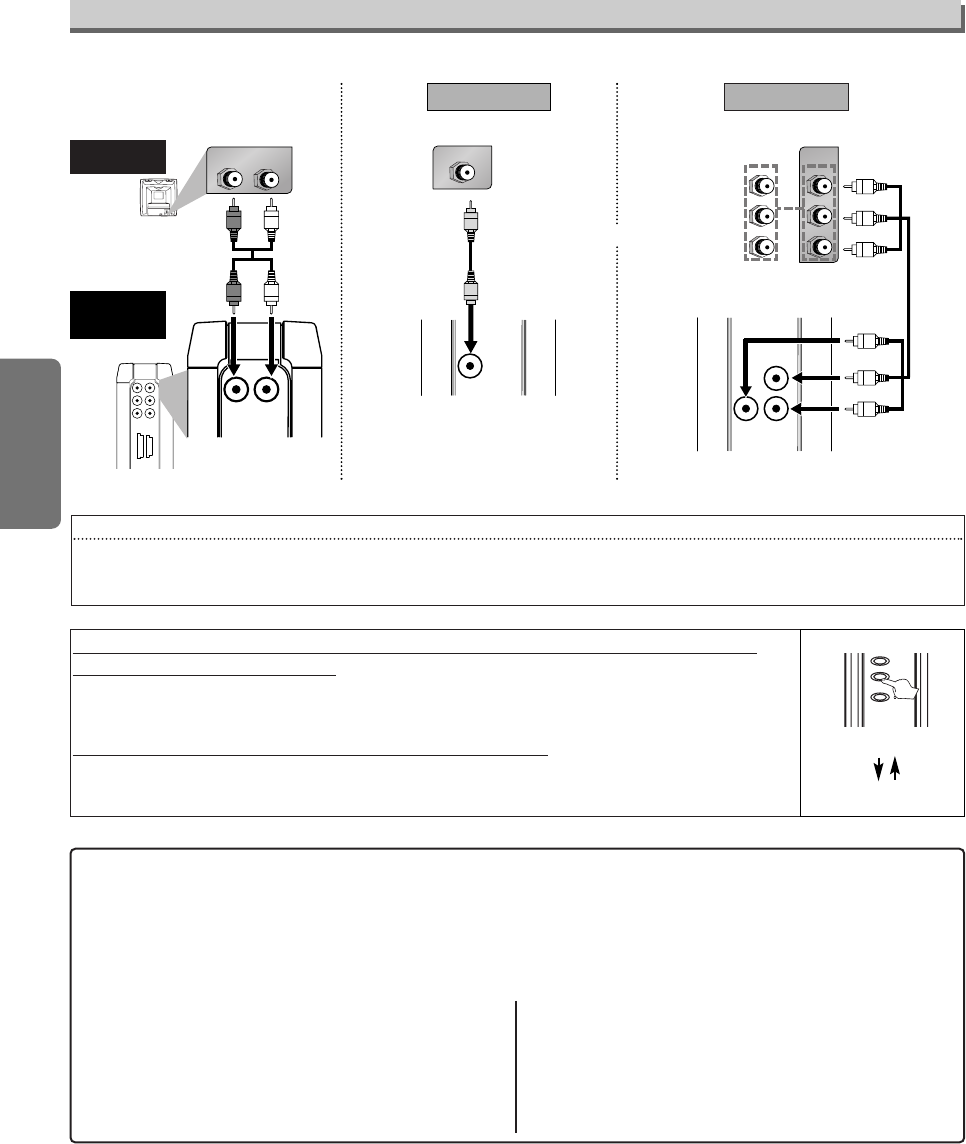

Method 1
Good pictureBasic Audio
Video
cable
(supplied)
Audio cable
(supplied)
DVD/CD
Player
or
(OUTPUT)
Y
CR/PR
CB/PB
COMPONENT
VIDEO OUT
C
B
Y
C
R
COMPONENT
VIDEO IN
or
P
B
Y
P
R
Method 2
Best picture
COMPONENT VIDEO OUT
Component Video cables
(commercially available)
IN
OUT
IN
OUT
IN
OUT
C
STOP
EJECT
B
PLAY
PROGRESSIVE
[DVD/CD Player]
more than 5 seconds
[Interlace mode]
[Progressive scanning
mode]
