Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW
NOTE: The illustrations in this procedure show the installation of the
MMK-6X-DSW with the PMK-6X-DSW. Even though the illustrations only show
the PMK-6X-DSW, they are identical for the BB-6X-DSW.
1. Pass an adjustment plate through the opening and align its two center holes
with the top two pins on the PMK-6X-DSW. Verify that the pins on the
adjustment plate are not between (facing) the adjustment plate and the
PMK-6X-DSW. Refer to the illustration below for visual guidance.

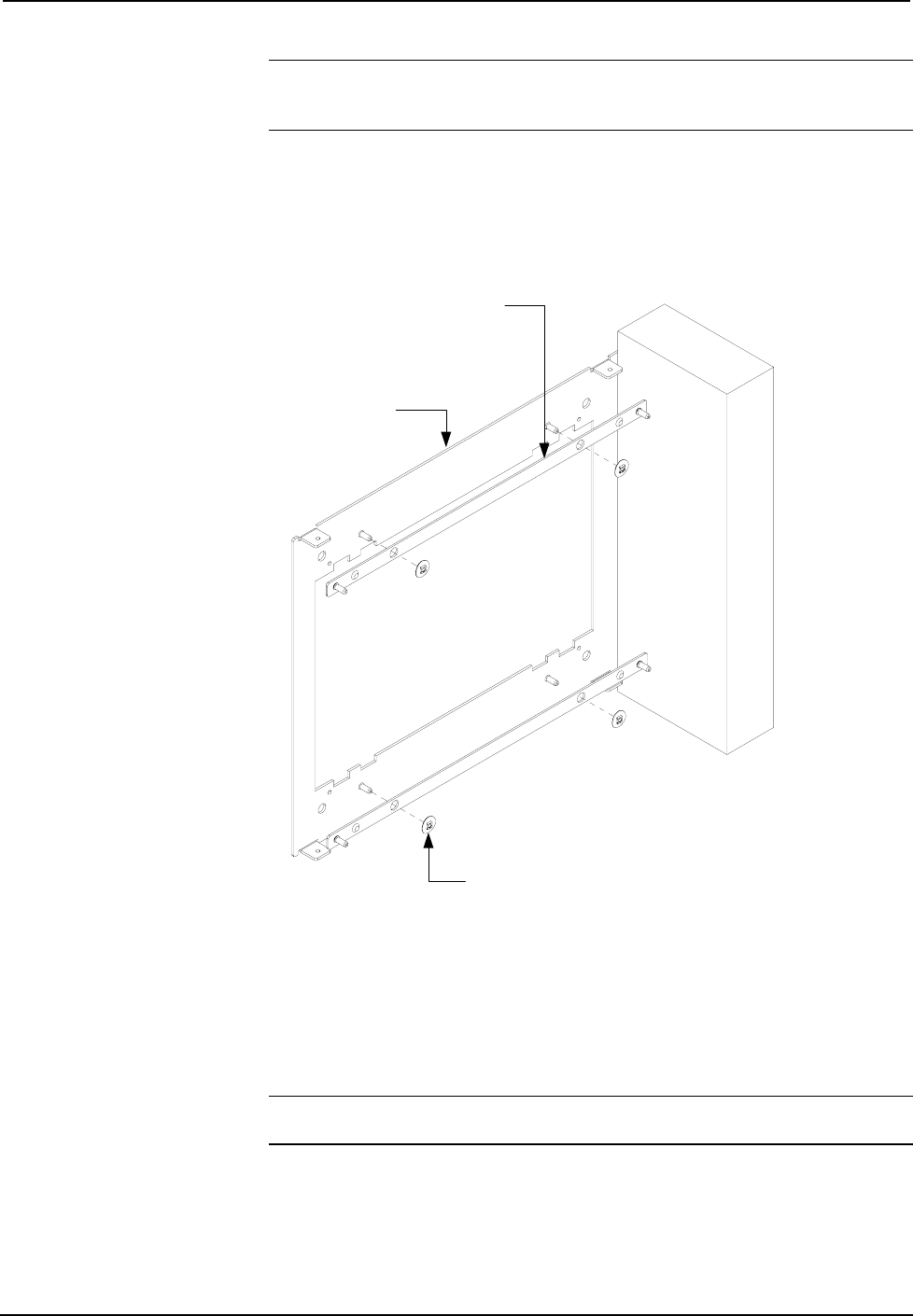

Secure Adjustment Plates to PMK-6X-DSW (or BB-6X-DSW)
PMK-6X-DSW
ADJUSTMENT PLATE (2)
(2017631 )
PUSH-ON FASTENER (4)
(2004121 )
NOTE: BACK VIEW
OF INSTALLATION.
2. Slide a push-on fastener over each pin of the PMK-6X-DSW (or
BB-6X-DSW) to loosely secure the adjustment plate and the mounting
plate. Do not push the push-on fasteners all the way down onto the pins.
Slide them on enough to keep the adjustment plate and mounting plate as
one adjustment/mounting plate assembly.
3. Use the second adjustment plate and repeat steps 1 and 2 using the lower
two PMK-6X-DSW (or BB-6X-DSW) pins.
NOTE: When installing into the PMK-6X-DSW, verify that the 18 AWG bus wire
securing the cables for the TPS-6X-DSW remains attached.
4. Insert the symmetrical mud ring plate into the opening, as shown in the
illustration on the following page.
Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 5
