Crestron MMK/WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW
NOTE: Make the cutout as level as possible. The mounting plate allows for only
minor leveling adjustments.
6. Use the drywall saw or equivalent and the included drywall cutout
template to produce an accurate and level cutout in the drywall.
7. Insert the symmetrical mud ring plate into the opening, as shown in the
illustration below.

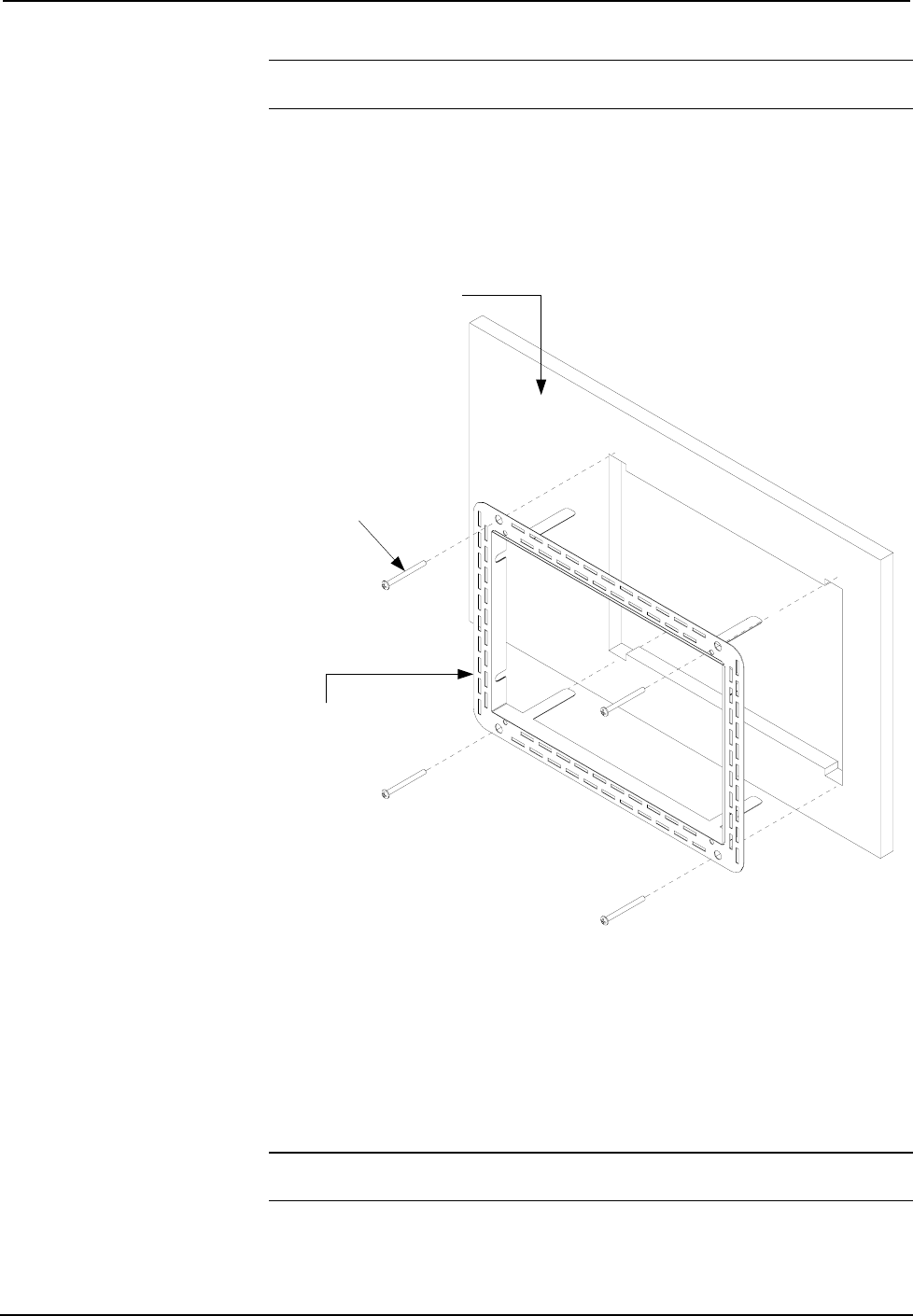

Insert Mud Ring Plate into Opening
DRYWALL
MUD RING PLATE
(2022809 )
DRYWALL SCREWS
(NOT INCLUDED)
SCREW LENGTH SHOULD NOT
EXCEED DRYWALL THICKNESS
BY MORE THAN 1/2" (13 MM).
8. Carefully pass the adjustment/mounting plate assembly through the
opening and rest the assembly against the interior surface of the
drywall. Verify that the adjustment plates are between the mounting
plate and the drywall.
9. When the adjustment/mounting plate assembly is in position, bend the
top two flanges of the mud ring upward (approximately 90 degrees) and
the bottom two flanges downward (approximately 90 degrees). Refer to
the illustration on the following page.
NOTE: Adjustment/mounting plate assembly will have a slight play; this is normal.
It allows for minor adjustments to the entire assembly during installation.
Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 9
